Engineering the Perfect Wax Pattern

Creating a flawless metal part starts long before the metal is poured; it begins with wax pattern production. We understand that in the lost wax casting process, any imperfection in the wax model translates directly to the final casting. That is why our wax equipment is engineered to eliminate variables and ensure absolute consistency from the very first step.

We don’t just supply individual machines; we provide the stability required for industrial-grade manufacturing. Whether you are managing complex geometries or high-volume runs, the integrity of your investment casting machinery determines your scrap rate and overall profitability. Our focus is on delivering turnkey solutions that bridge the gap between raw wax material and a precision-molded pattern ready for shelling.

Key Factors in Quality Wax Production:

• Dimensional Stability: Ensuring the wax holds its exact shape and tolerances during the cooling phase.
• Surface Finish: Achieving a smooth texture to minimize post-cast finishing requirements.
• Process Control: Utilizing advanced PLC systems to strictly regulate temperature and injection pressure.

By integrating high-performance hydraulic components and precise temperature management, we help foundries maintain the tight tolerances required for modern precision casting tooling.

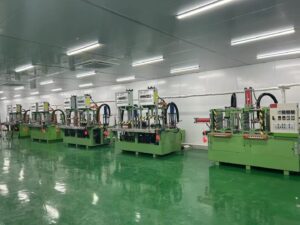

Wax Injection Systems

At the heart of any investment casting foundry is the ability to produce dimensionally accurate wax patterns repeatedly. Our wax equipment is engineered to handle the rigorous demands of industrial wax pattern production, ensuring that every cycle yields a flawless replica of the final metal component. We focus on hydraulic stability and precise temperature control to eliminate common defects like shrinkage or air entrapment.

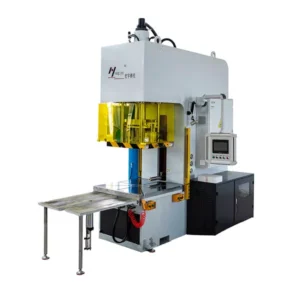

Automatic & Semi-Automatic Wax Injectors

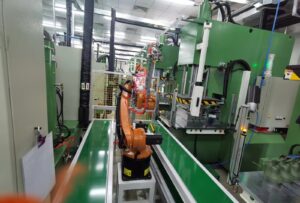

For high-volume production environments, speed and consistency are non-negotiable. We design our automatic wax injector systems to maximize throughput without sacrificing quality. Our two-station wax injection machines allow a single operator to manage two dies simultaneously, effectively doubling output compared to traditional single-station setups.

These units feature advanced PLC controls (typically Siemens) to regulate injection pressure, flow rate, and dwell time. This level of automation ensures that complex geometries are filled completely every time. Whether you are running paste wax injection or liquid processes, our systems maintain the tight tolerances required for modern investment casting machinery.

C-Frame & Manual Injectors

When versatility and accessibility are the priorities, the C-frame wax injection machine is the industry standard. The open-frame design provides access from three sides, making it significantly easier to change heavy dies or accommodate oversized tooling.

Our standard wax injection machines are built with heavy-duty hydraulic components to deliver reliable clamping forces ranging from 10T to 50T.

• Ergonomic Design: Easy access for operators to remove patterns manually.
• Variable Pressure: Adjustable settings to handle delicate patterns or robust structural parts.
• Temperature Stability: Integrated heating systems keep the wax reservoir at the optimal viscosity.

Ceramic Core Injectors

For hollow components requiring internal cooling passages or complex internal geometries, such as turbine blades, standard wax isn’t enough. Our equipment lineup supports ceramic core injection processes. These machines are calibrated to handle the higher abrasion and pressure requirements of injecting ceramic slurry.

By utilizing high-precision hydraulic control, we ensure that the precision casting tooling is filled without voids, creating a stable core that can withstand the subsequent metal pouring process. This equipment is essential for foundries targeting the aerospace and energy sectors where internal part architecture is critical.

Wax Preparation & Conditioning Units

Before any injection happens, the wax needs to be perfect. We know that inconsistent wax leads to rejected patterns, so our wax equipment lineup starts with robust preparation systems. We focus on getting the viscosity and temperature exactly right so your injectors run smoothly without clogging or air entrapment. Proper preparation is the foundation of the lost wax casting process, ensuring that the material properties remain stable from the melting pot to the mold.

Central Wax Melting Systems

Our central wax melting unit is the workhorse of the wax room. Instead of melting wax at every individual machine, we use a centralized system to melt large batches of solid wax into a liquid state efficiently. This ensures a steady supply of liquid wax preparation for the entire foundry, reducing downtime and energy consumption.

• Gentle Heating: We use precise electric heating elements that melt wax statically to prevent overheating or burning the material.
• High Capacity: These units are designed to handle heavy industrial loads, keeping up with high-volume production lines.
• Integrated Filtration: Our systems often include filtration steps to remove impurities before the wax ever reaches the conditioning stage.

Wax Conditioning Tanks

Once melted, the wax needs to be conditioned. Our wax conditioning system takes that liquid wax and cools it down to a precise semi-solid or “paste” state ideal for injection. This step is critical because poor conditioning is a common cause of pattern defects, often requiring operators to investigate wax injection troubleshooting to resolve issues like flow lines or shrinkage.

• Agitation Control: Continuous stirring mechanisms ensure the temperature is uniform throughout the tank, preventing cold spots.
• Viscosity Management: We maintain strict control over the cooling curve to achieve the perfect paste consistency required for high-precision wax pattern production.
• Air Removal: The system is designed to help release trapped air bubbles, ensuring a dense, high-quality wax pattern free of voids.

Dewaxing & Post-Processing Equipment

Getting the wax out of the ceramic shell without damaging the mold is a make-or-break moment in the lost wax casting process. If the wax expands before it melts, the shell cracks, and the part is ruined. We engineer our post-processing solutions to handle this delicate transition with industrial precision, ensuring high yields for your foundry.

Steam Dewaxing Autoclaves

Our dewaxing autoclaves are the workhorses of the shell room. These systems utilize high-pressure steam to flash-melt the wax pattern instantly. By achieving rapid pressurization, the surface wax melts and drains before the internal wax body expands, effectively relieving pressure on the ceramic walls to prevent cracking.

We prioritize operator safety and process consistency in every unit we build. Our dewaxing autoclave applications are designed with redundant safety measures and robust pressure vessels to meet the rigorous demands of modern manufacturing environments.

Key Features of Our Autoclaves:

• Rapid Pressurization: Reaches operating pressure in seconds to protect shell integrity.
• Safety Interlocks: Advanced door mechanisms prevent opening under pressure, keeping operators safe.
• Wax Reclamation: Efficient drainage systems allow for the collection and reuse of pattern wax, reducing material costs.
• Automated Control: PLC systems manage temperature and pressure cycles for repeatable results.

This wax equipment serves as the critical bridge between the pattern shop and the casting floor, ensuring your molds are clean, intact, and ready for firing.

Industry 4.0 & Smart Control Features

Modern investment casting requires more than just mechanical precision; it demands intelligent data management. We engineer our wax equipment to serve as the brain of your foundry, not just a muscle. By integrating advanced PLC systems and intuitive HMIs (Human-Machine Interfaces), we transform standard injectors into a fully connected automated cell. This allows for real-time monitoring of injection pressure, temperature, and flow rates, ensuring that every wax pattern production cycle is identical to the last.

Our foundry automation solutions focus on connectivity and traceability, which are critical for aerospace and medical casting sectors. We utilize RFID technology to automatically recognize dies and load the specific injection recipes, eliminating human error. While our systems utilize cloud capabilities for remote diagnostics and performance tracking to optimize your lost wax casting process, we strictly adhere to rigorous data privacy protocols to ensure your proprietary manufacturing data remains secure.

Key Smart Features

• RFID Die Recognition: Instantly identifies the mold and auto-sets injection parameters (pressure, time, temp).
• Remote Monitoring: Track machine status and output from your office or mobile device.
• Predictive Maintenance: Sensors alert you to wear on the auto wax machine components before a breakdown occurs.
• Data Logging: Automatically records process variables for every shot, providing full quality assurance documentation.

Smart System Capabilities

Technical Specifications Overview



When you are running a foundry, the numbers on the spec sheet translate directly to your bottom line. We design our wax equipment to handle the rigorous demands of modern investment casting without compromising on precision. Our machines are built with industrial-grade components to ensure consistent cycle times and repeatable accuracy, which are critical for maintaining tight tolerances in your final castings.

We integrate advanced technical advantages into every unit, from the hydraulic logic to the structural integrity of the frames. Below is a snapshot of the core specifications across our wax injection and processing lines.

Key Performance Metrics

Our systems are engineered to support 24/7 operation. The hydraulic units provide the muscle needed for dense pattern production, while the digital temperature management ensures your wax paste or liquid remains at the optimal flow state. Whether you are using a single-station manual injector or a fully automated cell, the underlying engineering focuses on reliability and ease of maintenance.

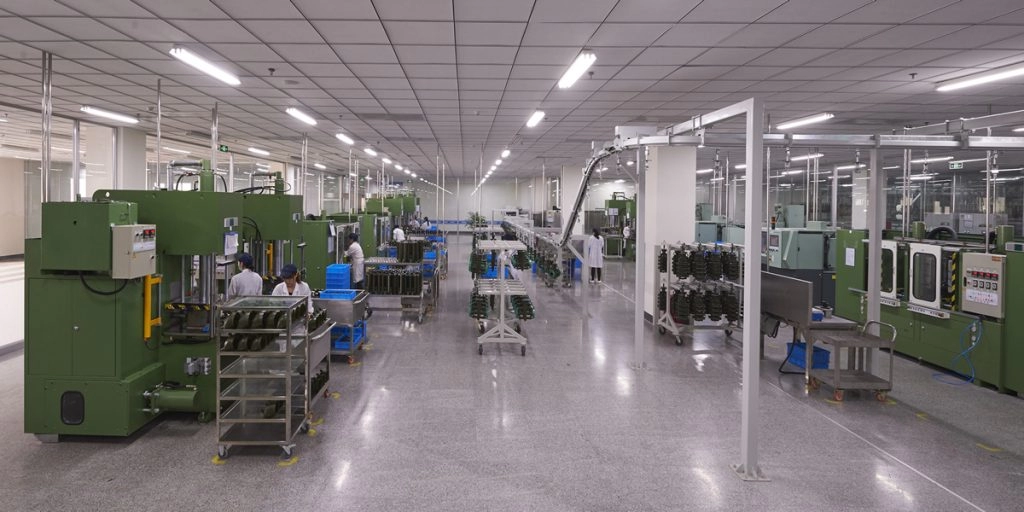

Why Choose Vastpce for Your Foundry?

At VastPCE, we understand that upgrading your investment casting machinery is a significant capital commitment. You need equipment that delivers consistent wax pattern production shift after shift, without the excessive price tag of European brands or the reliability issues of generic budget options. We position ourselves as the practical partner for foundries that demand industrial-grade performance and smart foundry automation solutions.

We don’t just sell standalone machines; we engineer complete production lines. Whether you need a single C-frame wax injection machine or a fully integrated wax reclamation system, our engineering team ensures every component communicates seamlessly. You can learn more about our manufacturing capabilities and history in our company introduction.

The VastPCE Advantage

We build our wax equipment using globally recognized components to ensure easy maintenance and long-term durability for our US clients.

• Top-Tier Components: We utilize trusted brands like Siemens for PLC controls and Bosch Rexroth or Yuken for hydraulic systems. This means replacement parts are easy to source locally.
• Heavy-Duty Build: Our machines feature rigid frames designed to handle high clamping forces without deflection, ensuring your wax patterns hold strict dimensional tolerances.
• Turnkey Capability: From the initial liquid wax preparation to the final dewaxing autoclave, we handle the entire process flow.

Comparison: VastPCE vs. Generic Suppliers

By choosing us, you get a partner dedicated to optimizing your lost wax casting process, ensuring you hit your production targets with minimal downtime.

Frequently Asked Questions (Industrial Wax Equipment)

What types of wax injection machines do you manufacture?
We specialize in high-precision wax injection presses designed for industrial workloads. Our lineup includes C-frame and Four-column models, available in both single and double-station configurations to maximize output. These machines utilize powerful hydraulic drives with clamping forces typically ranging from 10T to 50T, ensuring dense and accurate patterns for your investment casting machinery setup.

Do you provide complete solutions for the wax room?
Yes, we offer turnkey solutions for the entire lost wax casting process. We don’t just supply standalone injectors; we manufacture the full range of wax equipment needed for a modern foundry. This includes:

• Wax Preparation: Automatic melting and conditioning tanks.
• Pattern Production: Precision injection machines.
• Post-Processing: Wax pattern cleaning lines and etching equipment.
• Dewaxing: High-pressure steam dewaxing autoclaves.

How does your equipment handle temperature control?
Consistency is key in wax pattern production. Our wax conditioning systems and melting units feature advanced PLC interfaces (often Siemens) and precise electric heating. This technology strictly regulates temperature and pressure, ensuring the wax viscosity remains stable whether you are using liquid or injector paste.

How do I get support for installation or maintenance?
We have extensive experience exporting globally and supporting international foundries. We provide technical guidance to ensure your line operates at peak efficiency. For specific inquiries regarding maintenance protocols or troubleshooting, you can rely on our dedicated support services to keep your operation running smoothly.

Is your machinery suitable for heavy industrial use?
Absolutely. Our equipment is built with heavy-duty frames and high-performance hydraulic components designed to withstand the rigors of continuous industrial production. We focus on stability and durability, making our machines a reliable choice for foundries demanding high-cycle efficiency.
