Wax Injection Machine for Investment Casting

High-Stability Solutions for Precision Investment Casting

Vastpe supplies automatic wax injection machines for precision casting foundries and manufacturers producing investment castings. Our equipment is designed to create repeatable wax patterns for complex components, with controlled injection, stable wax flow and configurable automation.
The machine can be specified around wax type, pattern geometry, part size, required clamping force, production volume, cycle time and factory automation requirements. Vastpe supports customers from equipment selection and process review through installation, commissioning, operator training and maintenance.

Wax Injection Machine Overview

Wax pattern production is the first major forming stage in the investment casting process. Pattern accuracy, surface quality and dimensional consistency can affect ceramic shell building, dewaxing and the final metal casting.
Vastpe’s automatic wax injection machines are designed for precision pattern production in investment casting applications. Depending on the selected configuration, the equipment can support single-station or multi-station production, programmable process control, vacuum assistance and integration with tooling, pattern assembly and downstream shell-building operations.
The correct machine configuration depends on the wax formulation, mold dimensions, pattern complexity, production volume and required level of automation. Our engineering team can review these factors before recommending a suitable machine type and process setup.
High-precision automatic cylinder-free wax injection machine for industrial casting

All Wax Injection Machines

Product Image

Wax Injection Molding Machine for Investment Casting

High precision wax injection molding machine for investment casting with stable control efficient cycle times and reliable pattern quality

Product Image

Horizontal Intelligent Wax Injection Machine for Investment Casting

Horizontal intelligent wax injection machine for precision investment casting with PLC control high pressure stable performance and energy efficient operation

Product Image

Vastpce Hydraulic Wax Injection Machine for Precision Casting

Vastpce hydraulic wax injection machine for precision investment casting with stable pressure fully automatic PLC control and high efficiency

Product Image

Large Wax Injection Machine High Capacity Precision Control

Large wax injection machine for precision investment casting with high clamping force advanced PLC control and reliable industrial performance

Product Image

Two Station Wax Injection Machine for Investment Casting with Independent Controls

Vastpce two station wax injection machine boosts investment casting efficiency with independent controls precise temperature and high clamping force.

Total 13 items

Vastpe Precision Wax Injection Series

Vastpce 3 Kg Precision Automatic Wax Injector

Cylinder-Free Technology and Process Advantages

Vastpe’s cylinder-free wax injection technology uses a tankless injection design to support stable, pulse-free wax flow. By simplifying the injection architecture, the system is designed to provide consistent filling behavior and repeatable wax pattern production.
The actual process result depends on wax properties, mold design, temperature control, injection parameters, vacuum conditions and operator or automation settings. Process validation should be completed for each pattern and wax system.

Pulse-Free Wax Flow

A stable wax flow can help reduce variation during mold filling and support more consistent pattern density and surface quality. The injection profile should be adjusted according to the wax formulation and pattern geometry.

Cylinder-Free Injection Design

The cylinder-free configuration reduces reliance on conventional wear-prone injection components. This can simplify equipment maintenance and support a clean, controllable injection process, subject to the selected machine configuration.

Controlled Wax Temperature

Temperature control helps maintain suitable wax viscosity during injection. The required temperature range depends on the wax formulation, mold material, pattern geometry and validated process window.

Vacuum-Assisted Pattern Production

Where vacuum functionality is included, the system can help reduce air entrapment and improve filling of intricate mold features. Vacuum requirements depend on the mold design and production process.

Automatic Process Control

PLC or intelligent control systems can manage injection sequences, temperature settings, holding stages and other process parameters according to the machine configuration.

Reduced Manual Variation

Programmable cycles and repeatable machine movement can help reduce operator-to-operator variation in wax pattern production. The final quality still depends on tooling accuracy, wax condition, process setup and inspection controls.

Technical Specifications and Available Configurations

Vastpe can configure wax injection equipment around the customer’s pattern, mold and production requirements. The final technical specification should be confirmed during the engineering review.

Available Configuration Factors

•Injection method and cylinder-free tankless design
•Injection pressure and flow-control range
•Wax reservoir or supply arrangement
•Wax temperature control and heating method
•Vacuum-assisted injection, where required
•Mold clamping force and mold dimensions
•Single-station or multi-station configuration
•Horizontal or vertical machine arrangement
•PLC, HMI and automatic process control
•Pattern unloading and handling interface
•Tooling, fixture and pattern-assembly integration
•Safety enclosure and operator access
•Data logging and production traceability
•Factory power, air and utility requirements

Machine Selection Criteria

Before selecting a wax injection machine, review:
1.Wax formulation and operating temperature
2.Pattern dimensions, weight and geometry
3.Required mold size and clamping force
4.Desired production volume and cycle time
5.Pattern tolerance and surface-quality requirements
6.Vacuum and air-removal requirements
7.Existing tooling and downstream shell-building process
8.Available factory space and material flow
9.Required automation and data interfaces
10.Maintenance, training and service expectations
Do not publish fixed pressure, temperature, clamping-force or cycle-time values until they have been confirmed for the specific machine model and application.

Materials: Titanium, Stainless Steel and Superalloys

Wax injection machines form wax patterns rather than metal castings. Material selection on this page refers to the metal casting applications and alloy systems that the wax patterns are intended to support.

Titanium Investment Castings

Wax pattern production for titanium investment casting requires stable pattern geometry and careful process control because dimensional variation in the pattern can affect the ceramic shell and final casting. Machine settings should be validated for the wax system, mold design and titanium casting program.

Stainless Steel Investment Castings

Stainless steel investment castings are used across industrial, automotive, medical and fluid-control applications. Consistent wax patterns can support repeatable ceramic shell building and downstream casting quality, subject to tooling, shell and metal-process controls.

Superalloy Investment Castings

Superalloy applications such as turbine and high-temperature components require careful control of geometry, surface quality and traceability. Vastpe wax injection equipment can be configured for pattern production used in demanding superalloy investment casting programs, subject to technical review.

Other Casting Alloys

The machine may also be evaluated for other investment casting alloy systems. Suitability depends on the wax formulation, pattern design, tooling, shell process and customer quality requirements.

Applications: Aerospace, Automotive, Medical and Nuclear

Aerospace and Aviation

Produce dimensionally stable wax patterns for turbine blades, engine components and other complex aerospace castings. The required wax, tooling, inspection and traceability process should be confirmed for each program.

Automotive

Support repeatable wax pattern production for engine, turbocharger, drivetrain and fluid-control components. Automatic cycle control can help manufacturers manage production volume and pattern consistency.

Medical Components

Support precision wax pattern production for medical components, specialized instruments and other complex parts. Material, cleanliness, surface quality and documentation requirements should be defined before equipment selection.

Nuclear and Energy Equipment

Support controlled pattern production for pumps, valves, power-generation components and other investment castings used in demanding energy applications. The applicable quality system, inspection plan and documentation requirements must be confirmed for the project.

General Industrial Applications

Wax injection equipment can also support precision castings for pumps, valves, industrial machinery and engineered metal components where repeatable patterns and controlled production cycles are required.

Installation, Commissioning and Maintenance

Vastpe provides technical support throughout the equipment lifecycle. The support scope depends on the selected machine, project location and customer requirements.

Installation and Site Preparation

Before delivery, review the available floor space, utilities, lifting access, factory temperature, ventilation, compressed air, power supply and material flow. A suitable site plan helps reduce installation delays.

Commissioning

During commissioning, the machine is checked against the agreed configuration and operating requirements. The process may include mold trials, wax temperature setup, injection-cycle adjustment, vacuum validation where applicable and initial pattern inspection.

Operator Training

Training can cover machine operation, recipe or parameter management, mold handling, safety procedures, routine cleaning and basic troubleshooting.

Preventive Maintenance

Regular maintenance may include checking heating and temperature-control components, cleaning wax-contact areas, inspecting seals and fixtures, reviewing vacuum components where fitted and verifying control-system alarms.

Remote and On-Site Technical Support

Vastpe can provide troubleshooting guidance, process review and service coordination according to the project scope. Keep machine model, pattern information, wax batch, alarm history and process settings available when requesting support.

Wax Injection Process Control

A repeatable wax injection process depends on the interaction between machine, wax, tooling and operator settings. Recommended process records may include:
•Wax type and batch information
•Wax temperature and holding condition
•Injection pressure or flow setting
•Injection and holding time
•Mold temperature where applicable
•Vacuum setting and duration where applicable
•Pattern weight and dimensional checks
•Defect observations and corrective actions
•Machine alarms and maintenance records
These records can help identify whether a defect originates from wax condition, tooling, temperature, filling, vacuum, handling or machine settings.

Common Wax Pattern Defects and Troubleshooting

Incomplete Filling

Possible causes include insufficient wax temperature, unsuitable injection settings, restricted gates, inadequate venting or an unsuitable mold condition. Review the wax, tooling and process window before increasing pressure.

Flashing or Parting-Line Defects

Possible causes include insufficient mold closure, worn tooling, excessive injection pressure or mold-parting problems. Inspect the mold condition and clamping setup.

Air Entrapment or Voids

Possible causes include filling behavior, venting, wax condition or insufficient vacuum where vacuum is required. Review the mold design and vacuum process rather than relying on a single parameter change.

Pattern Distortion or Dimensional Variation

Possible causes include uneven cooling, early demolding, wax temperature variation, tooling movement or handling stress. Check the complete cycle and pattern-support method.

Surface Defects

Possible causes include wax contamination, poor mold condition, unsuitable temperature, release-agent issues or handling damage. Check wax cleanliness and the mold before changing injection settings.
Final troubleshooting should be based on the actual wax formulation, mold, machine model and inspection data.

Precision Automatic Wax Injector

Engineered for high-fidelity pattern reproduction, this vacuum-integrated system eliminates air inclusions for superior casting quality. It is the ideal solution for intricate jewelry molds and high-precision small industrial components. Explore more about our products designed for precision casting.

  • Integrated vacuum pump ensures bubble-free, high-density wax patterns
  • Intelligent PID temperature control for consistent wax viscosity
  • Compact, ergonomic design with an intuitive digital interface

Request Technical Specifications

Industrial-Scale Wax Injection Solutions

Vastpe offers heavy-duty machinery tailored for large-scale investment casting. Supporting diverse materials like titanium and superalloys, our systems deliver the stability required for aerospace and automotive standards. Discover our advanced
robot-integrator products that optimize these processes.

  • Multi-station configurations to maximize manufacturing throughput
  • Cylinder-free (tankless) injection design for enhanced uniformity
  • Advanced PLC automation to reduce labor and manual intervention
  • Rugged stainless steel construction for long-term industrial durability


Consult Our Engineering Team

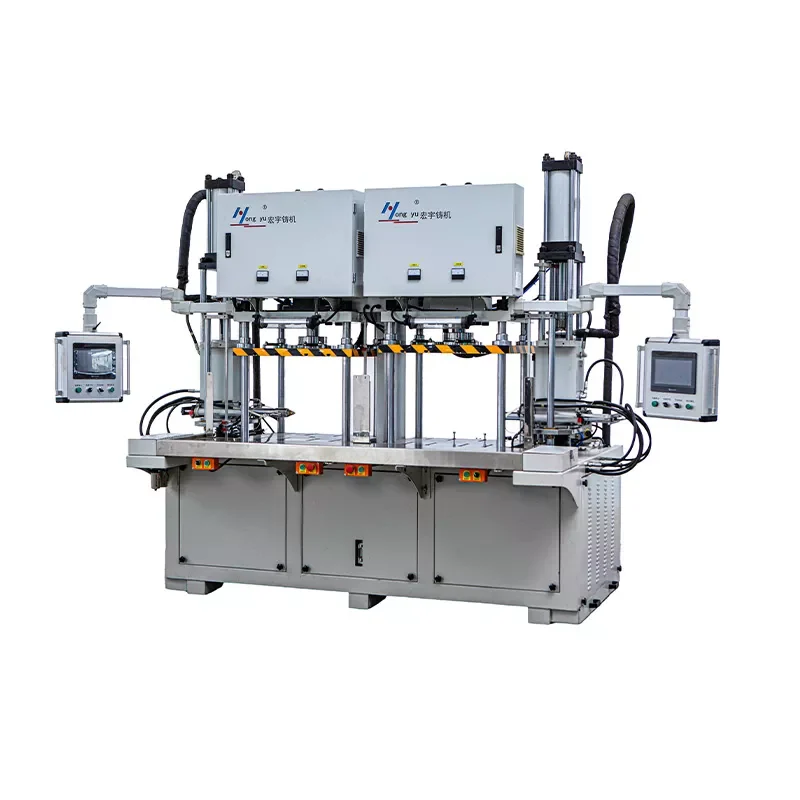

Vastpce Industrial Investment Casting Solutions

Empowering Critical Industries with Precision Wax Injection

High-precision wax patterns for aerospace casting

Aerospace & Aviation

Producing complex, dimensionally stable wax patterns for superalloy turbine blades and structural components, ensuring peak reliability in high-stress environments.

Automated wax injection for automotive parts

Automotive Engineering

Accelerating mass production of engine and drivetrain components with high-speed, automated wax injection that reduces cycle times and optimizes material usage.

Precision wax molds for energy industry turbines

Energy & Medical

Delivering specialized wax molding solutions for heat-resistant turbine parts and high-precision medical implants with strict quality control standards.

Why Choose Vastpe Wax Injection Solutions?

Explore our diverse wax injection applications tailored to meet industry-specific needs.

  • Precision wax control minimizing material waste
  • Smart automation reducing manual labor costs
  • Versatile compatibility with diverse alloys
  • Industry-leading repeatability and stability

Full-Lifecycle Technical Support & R&D

Vastpe provides end-to-end service for our automatic wax injection
systems, ensuring your precision casting line operates at peak efficiency. Our expert engineering
team offers seamless integration, proactive troubleshooting, and specialized R&D to meet evolving
industry standards.

From initial equipment commissioning to advanced process optimization, we deliver tailored technical
solutions designed to maximize throughput and ensure the long-term reliability of your investment.

  • Professional Installation & Commissioning:

    Rapid on-site setup to ensure immediate production readiness.

  • Expert-Led R&D Support:

    Access to senior professors and engineers for complex material and process customization.

  • Preventative Maintenance & Remote Assistance:

    Proactive lifecycle management to minimize downtime and optimize yield.

Technical support and R&D for automatic wax injection equipment

Optimize Your Wax Injection Process Today

Partner with Vastpe for high-performance wax injection solutions tailored
to your precision casting needs. Our advanced cylinder-free designs
ensure superior wax pattern stability and uniformity for aerospace,
automotive, and medical-grade components.

Consult with our engineering experts to integrate automated,
high-efficiency injection technology into your production line, reducing
material waste and ensuring strict quality compliance. For more details
or specific inquiries, feel free to contact us.

Vastpce automatic wax injection equipment for high-precision casting

FAQ

What injection pressure does the machine provide?

Injection pressure depends on the machine model, injection system, wax formulation, mold design and required pattern geometry. Vastpe should confirm the available pressure range during technical review rather than applying one pressure value to every application.

What wax temperature is required?

The appropriate wax temperature depends on the wax formulation, viscosity, mold design, ambient conditions and validated process window. The machine can be configured with temperature control to maintain the required operating condition.

Is vacuum available?

Vacuum-assisted injection can be included where required by the pattern geometry and process. The required vacuum level, duration and equipment configuration should be confirmed during application review.

How can air entrapment be reduced?

Review mold venting, wax condition, injection profile, temperature, filling behavior and vacuum requirements. A vacuum-integrated configuration may help with suitable patterns, but it does not replace proper tooling and process validation.

What causes wax pattern defects?

Common causes include unsuitable wax temperature, unstable filling, tooling wear, mold-parting issues, contamination, cooling variation, handling damage and incorrect process settings. Record the defect location, pattern condition, wax batch and machine parameters for troubleshooting.

What is the typical cycle time?

Cycle time depends on pattern size, mold design, wax formulation, injection and holding stages, cooling requirements, operator handling and automation level. Vastpe can estimate cycle time after reviewing the drawing, mold and production target.

Can the machine produce patterns for titanium and superalloy castings?

The machine can be evaluated for wax patterns used in titanium, stainless steel and superalloy investment casting. The suitability of the machine, wax and tooling must be confirmed for the specific casting program.

Can the machine be integrated into an automated line?

Depending on the configuration, the machine can be planned with pattern handling, tooling, shell-building and production-line automation. Integration requirements depend on the factory layout, interfaces and target production workflow.

RFQ: Information Required for a Wax Injection Machine Quote

To help us review your application, please provide as much of the following information as possible:
•2D drawings or 3D CAD files for the part and wax pattern
•Casting material or target alloy, such as titanium, stainless steel or superalloy
•Wax formulation and operating temperature, if known
•Part dimensions, pattern size and estimated pattern weight
•Mold dimensions and existing tooling information
•Required annual volume and target production rate
•Desired cycle time or number of machines required
•Required automation level and pattern-handling method
•Vacuum, inspection, traceability or data-logging requirements
•Available factory space, utilities and site conditions
•Required installation, training and maintenance support
Send Your Drawing and Wax Pattern Requirements
Vastpe’s engineering team can review your pattern geometry, material application, annual volume and automation requirements to recommend a suitable wax injection machine configuration.

Related Resources

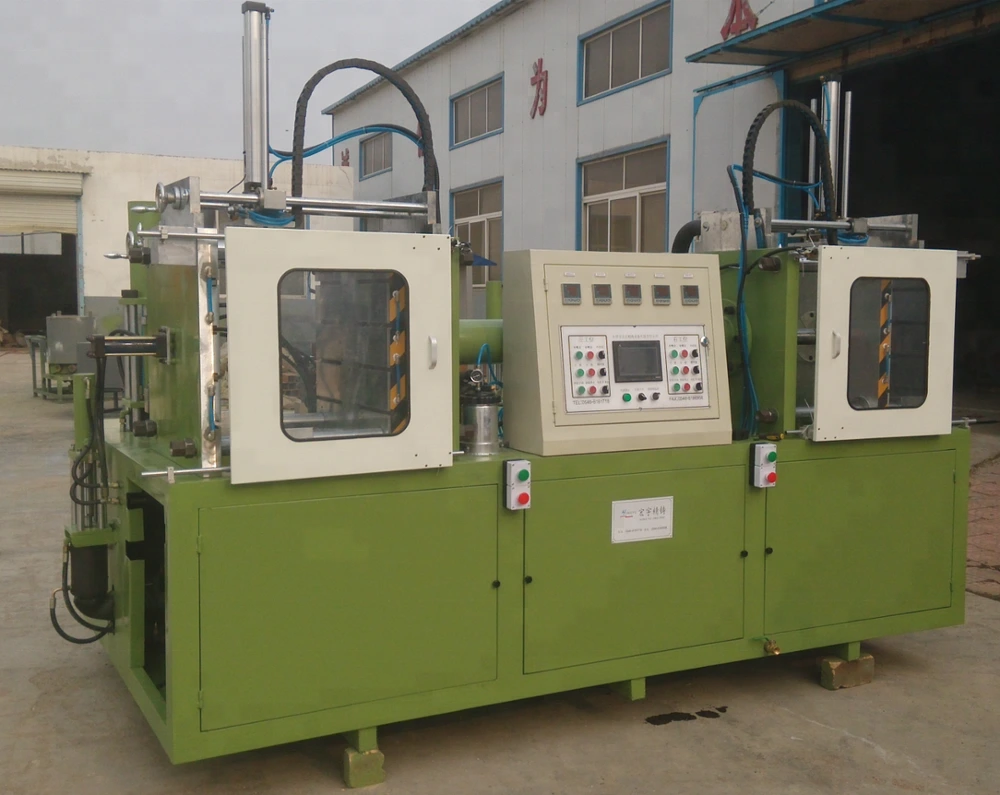

Wax Injection Process Guide for Precision Investment Casting

Wax Injection Process Guide for Precision Investment Casting

Learn the wax injection process steps parameters mould types advantages and defect troubleshooting

Read More

3D Printed Wax vs Injected Wax for Casting Compared

3D Printed Wax vs Injected Wax for Casting Compared

Discover 3D printed wax vs injected wax for casting comparing workflow precision burnout behavior cost and ideal use cases

Read More

Replacing Wax in Injection Pot for Better Casting Quality

Replacing Wax in Injection Pot for Better Casting Quality

Learn expert steps for replacing wax in injection pot systems to improve jewelry casting quality safety maintenance and troubleshooting

Read More



en_USEnglish
Scroll to Top
