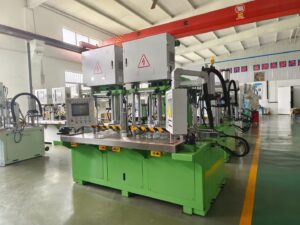

Two Station Wax Injection Machine for Investment Casting with Independent Controls

The Two Station Advantage

Are production bottlenecks and idle operator time slowing down your foundry’s throughput? At Vastpce, we understand that in the competitive world of investment casting, cycle time is money. Our two station wax injection machine for investment casting is engineered to eliminate dead time, transforming how you manage wax pattern production.

By integrating high-performance hydraulic systems with a smart dual-station design, we provide a solution that maximizes the utility of your floor space and your workforce. Whether you are producing intricate aerospace components or robust automotive hardware, this machine is the cornerstone of an efficient wax pattern production line.

The Efficiency Hook: Doubling Wax Pattern Output Per Operator

The biggest enemy of productivity in a foundry is the “wait time” during the wax cooling and die stripping phase. Our double station wax injector solves this by utilizing a shuttle-table or dual-station configuration.

Here is how we double your efficiency:

• Continuous Operation: While one station is under the injection nozzle filling the die, the operator is simultaneously stripping the pattern and preparing the die at the second station.
• Zero Idle Time: The machine never stops waiting for the operator, and the operator never stops waiting for the machine.
• Maximized ROI: You effectively get the output of two machines with the footprint and labor cost of one.

Comparison: Single vs. Dual Station Efficiency

Feature	Single Station Injector	Vastpce Two Station Machine
Operator Activity	Idle during injection/cooling	Active (Stripping/Assembling)
Machine Activity	Idle during stripping	Continuous Injection Cycles
Throughput	1x Output	2x Output (approx.)
Floor Space	High per part produced	Optimized per part produced

Versatility: Running Two Different Molds Simultaneously

Speed means nothing without control and flexibility. Unlike rigid systems that require identical setups, our dual head wax injection system allows for independent operation of each station.

• Independent Parameters: You can run a complex, heavy geometry on Station A and a smaller, delicate part on Station B.
• Custom Recipes: Our system allows for distinct pressure, flow, and temperature settings for each die, ensuring the paste wax injection unit delivers perfect results for both molds.
• Production Agility: Quickly switch dies on one station without halting production on the other, making it ideal for high-mix, low-volume orders typical in modern investment casting equipment requirements.

Key Features & Engineering Highlights

When we engineer our two station wax injection machine for investment casting, we focus on giving foundries absolute control over the molding process. We don’t just build a machine; we build a solution that handles the rigorous demands of a modern wax pattern production line.

Independent Station Control via PLC

Flexibility is the main advantage here. We design our PLC control wax injector system so that each station operates independently. You can run a high-pressure cycle on the left station for a complex turbine blade while running a low-pressure cycle on the right for a simple fitting. This allows you to manage pressure, flow rate, and injection time separately, effectively giving you two machines in one footprint.

Advanced Hydraulic System

Consistency creates quality. Our hydraulic wax press machine utilizes a high-performance hydraulic circuit that ensures stable clamping force throughout the injection cycle. This prevents mold separation and eliminates “flash” on the wax patterns, reducing the time your team spends on manual cleanup later.

Precise Temperature Management

Temperature fluctuation causes shrinkage and dimension errors. To solve this, we implement multi-zone PID control. This system monitors the wax tank, injection nozzle, and hose independently, keeping temperatures stable within ±1°C. Whether you are running a paste wax injection unit or liquid wax, the viscosity remains perfect for filling intricate details.

Ergonomic C-Frame or 4-Column Design

We build for the operator. Our C-frame wax injection machine design offers three-sided access, making it incredibly easy to load and unload heavy dies. For larger molds requiring higher stability, our 4-column structure provides maximum rigidity. Both designs prioritize a comfortable working height to reduce operator fatigue.

Smart HMI Interface

Efficiency means fast changeovers. We equip every industrial wax molding machine with a user-friendly HMI touch screen. You can store hundreds of mold “recipes” (parameters for pressure, time, and temp). When it’s time to switch jobs, the operator simply selects the mold number, and the machine is ready to go.

System Feature Breakdown

Feature	Function	Benefit
Dual PLC Control	Independent settings for each nozzle	Run two different parts simultaneously without conflict.
PID Temp Control	Multi-zone heat regulation	Prevents wax shrinkage and ensures dimensional accuracy.
Hydraulic Clamping	High-pressure mold locking	Eliminates flash and ensures safe high-pressure injection.
Recipe Storage	HMI memory for mold parameters	Reduces setup time and minimizes operator error.
Safety Interlocks	Dual-hand operation buttons	Protects the operator during the clamping cycle.

Technical Specifications & Data

When selecting a two station wax injection machine for investment casting, understanding the core engineering metrics is vital for predicting production throughput. We design our double station wax injector systems to balance raw power with delicate precision, ensuring that increased speed doesn’t compromise pattern fidelity.

Our wax injection machine for investment casting series is built to accommodate a wide range of mold sizes and complexities. Below are the standard specifications for our high-performance units.

Machine Capabilities at a Glance

Feature	Specification Range
Clamping Force	10 Tons – 50 Tons (Customizable up to 100T)
Structure Type	4-Column (High Stability) or C-Frame (Easy Access)
Injection Pressure	Variable Closed-Loop Control (0 – 100 bar)
Flow Rate	Precision Adjustable for Liquid & Paste Wax
Temp Control	Multi-zone PID (Reservoir to Nozzle)
Platen Size	Optimized for Standard & Shuttle Table Molds

Clamping Force & Structural Integrity

We offer flexible clamping options ranging from 10T to 50T, allowing foundries to handle everything from small intricate jewelry patterns to substantial industrial components. The hydraulic wax press machine utilizes a robust cylinder design that maintains consistent pressure during the injection cycle, preventing flash and ensuring dimensional accuracy. For heavy-duty applications, our 4-column structures provide maximum rigidity, while C-frame designs offer superior operator access for faster die changes.

Precision Injection & Flow Control

Consistency is the key to reducing scrap. Our variable pressure wax machine systems feature advanced flow control technology. By utilizing closed-loop feedback, the system monitors wax flow and pressure in real-time. This ensures that the injection profile remains stable shot after shot, whether you are running a paste wax injection unit or liquid wax. The wax reservoir is equipped with precise temperature management to maintain the perfect viscosity from the tank to the injection tip.

Power & Efficiency

Modern manufacturing demands energy efficiency. Our machines are engineered to optimize power consumption without sacrificing cycle speed. By integrating smart hydraulic systems and efficient heating elements, we help you lower operational costs while maintaining high-volume output. For detailed insights into our engineering standards, explore our technical advantages in equipment manufacturing.

Operational Advantages: Why Choose Vastpce?

When you invest in a two station wax injection machine for investment casting, you aren’t just buying hardware; you are upgrading your entire production workflow. At Vastpce, we focus on engineering solutions that solve real foundry bottlenecks. Our dual-station designs maximize uptime by allowing one operator to strip a die while the other station injects, effectively doubling throughput without doubling the labor.

Footprint Optimization: Saving Floor Space

Space is a premium asset in any manufacturing facility. Installing two separate single-station machines consumes significant square footage and requires complex layout planning. Our double station wax injector utilizes a compact shuttle-table design or dual-station frame that delivers the output of two units within a much smaller footprint. This allows you to increase production density per square meter, leaving more room for assembly and other critical investment casting applications.

Cost Efficiency: Lower Capital Investment

Running a profitable foundry requires smart capital allocation. A dual head wax injection system offers a distinct financial advantage over purchasing multiple standalone units.

• Shared Resources: Both stations utilize a single hydraulic power unit and PLC interface, reducing initial hardware costs.
• Reduced Maintenance: Maintaining one consolidated machine is faster and cheaper than servicing two separate engines and electrical cabinets.
• Energy Savings: The system optimizes power consumption by directing hydraulic pressure exactly where it is needed, preventing energy waste during idle cycles.

Pattern Quality: Paste and Liquid Wax Capabilities

Speed means nothing without precision. Our machines are engineered to handle both paste and liquid wax with exceptional repeatability. By using advanced flow control and precise temperature management, we ensure that every pattern—whether a simple commercial part or a complex aerospace component—maintains tight dimensional tolerances. This capability significantly reduces scrap rates and ensures that your wax pattern production line operates at peak efficiency.

Feature	Single Station Machine	Vastpce Two Station Machine
Throughput	Standard Cycle	Double Output (Simultaneous Ops)
Floor Space	High (Requires 2 Units)	Optimized (Compact Footprint)
Operator Ratio	1 Operator / 1 Machine	1 Operator / 2 Stations
Energy Use	Double Draw	Efficient Shared Power

Industrial Applications for Dual Station Injectors

Our two station wax injection machine for investment casting is engineered to meet the rigorous demands of diverse sectors, delivering the high repeatability and throughput required by modern foundries. By utilizing a shuttle-table design or independent dual-station controls, we help manufacturers scale production without expanding their facility footprint.

Automotive: Turbochargers and Engine Components

In the automotive industry, volume and precision must go hand-in-hand. The double station wax injector is ideal for mass-producing complex parts like turbocharger wheels and intricate engine components. The ability to run two molds simultaneously allows for rapid cycle times, ensuring that high-demand production schedules are met while maintaining strict dimensional tolerances.

Aerospace: Turbine Blades and Structural Brackets

Aerospace applications demand zero defects. Our lost wax casting machinery provides the precise temperature and flow control necessary for critical components such as turbine blades and structural brackets. The machine’s stability ensures that even large, complex patterns are free from shrinkage or flow lines, meeting the stringent quality standards of the aviation sector.

General Hardware: Valves, Pumps, and Fittings

For manufacturers of fluid handling equipment, efficiency is key to profitability. This industrial wax molding machine excels in producing valves, pump bodies, and industrial fittings. The dual-station setup allows operators to strip one die while the other is injecting, significantly reducing idle time and lowering the cost per part for general hardware items.

Golf & Marine: Club Heads and Hardware

The finish and detail on consumer goods like golf club heads and marine hardware are paramount. Our investment casting foundry supplies include machines capable of handling the fine geometries required for these premium products. Whether it is a stainless steel marine cleat or a titanium driver head, the precise injection pressure ensures a perfect surface finish every time.

For more details on machine specifications suitable for these industries, please visit our shop.

Manufacturing Quality & Global Support



Proprietary Technology & Build Quality

We don’t rely on generic setups; we build our machines to lead the industry. At the heart of our two station wax injection machine for investment casting is the MPI Smart Controls system. This proprietary technology monitors every critical variable in real-time, ensuring that flow, temperature, and pressure remain consistent across both stations. By maintaining strict process control, we help you significantly reduce scrap rates and achieve superior pattern quality compared to standard industrial wax molding machines.

Customization & Automation Readiness

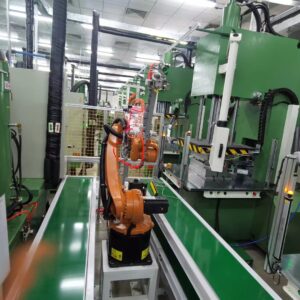

Your foundry has unique needs, and our equipment is designed to meet them. We offer flexible configurations, ranging from versatile C-frame wax injection machines for easy access to robust 4-column structures for heavy-duty applications. Furthermore, our machines are engineered with future growth in mind. They are fully compatible with automated wax injection cells, allowing you to integrate robotic pattern assembly systems seamlessly as your production volume increases.

World-Class Service & Training

Buying a machine is a partnership. We support our clients through the MPI Technology Center, a dedicated facility where we conduct process development and offer comprehensive operator training. Whether you need installation assistance, remote troubleshooting, or quick delivery of spare parts, our global support network ensures your investment casting equipment stays operational. We focus on maximizing your uptime and ensuring your team is confident in operating the machinery from day one.

Frequently Asked Questions (FAQ)

Can the two stations run different wax pressures?

Yes, our two station wax injection machines, specifically the 55 Series with shuttle tables, are driven by MPI Smart Controls. Since the injection process is sequential—the injector moves to the active station or the table shuttles the die—the system can instantly switch process parameters. You can store unique recipes for each station, allowing the machine to adjust flow, temperature, and pressure automatically for the specific mold currently being filled. This ensures precise process repeatability even if you are running two completely different parts.

What is the cycle time improvement compared to a single station?

The primary advantage of a double station wax injector is the elimination of idle time. In a standard single-station setup, the machine sits idle while the operator removes the pattern and cleans the die. With our shuttle design, the injection cycle occurs at one station while the operator simultaneously strips and preps the die at the second station. This parallel workflow maximizes machine up-time, significantly increasing your daily wax pattern production output without adding extra labor.

Does the machine support automatic die ejection?

Our equipment is built for flexibility, ranging from manual operation to fully automated cells. While the standard 55 Series focuses on ergonomic manual or semi-automatic operation to reduce operator fatigue, our systems are engineered to integrate seamlessly with automation. We can configure these machines within an automated cell where robotic systems handle the die opening and pattern removal, ensuring consistent handling and further optimizing the investment casting workflow.
