Large Wax Injection Machine High Capacity Precision Control

Large Wax Injection Machine Technology

The demand for massive, complex components in modern foundries has driven the evolution of high-tonnage automated injection systems. We have engineered our large wax injection machine lineup to bridge the gap between heavy-duty industrial power and the delicate precision required for the lost wax process. By focusing on structural stability and fluid dynamics, we ensure that large-scale pattern production is both repeatable and efficient.

Evolution of High-Tonnage Automated Injection

The industry has moved away from manual, low-pressure systems toward sophisticated, high-capacity machinery. Our development in this field focuses on three core pillars:

• Increased Clamping Force: Essential for preventing flash and maintaining dimensional accuracy in oversized molds.
• Enhanced Shot Volumes: Capable of delivering massive amounts of wax in a single, continuous flow.
• Process Automation: Integrating smart sensors to manage the complexities of high-tonnage cycles without constant manual intervention.

Vastpce Precision Engineering in the Lost Wax Process

We prioritize precision at every stage of the build. Our engineering philosophy centers on eliminating the variables that typically plague large-scale casting.

• Rigid Frame Construction: Minimizing deflection under extreme pressure to guarantee pattern uniformity.
• Advanced Flow Control: Our large wax injection machine technology utilizes specialized valves to maintain a laminar flow, preventing air entrapment in large cavities.
• Optimized Thermal Stability: Ensuring the wax remains at the perfect viscosity from the reservoir to the furthest corners of the die.

By combining heavy-duty hardware with refined control software, we provide the stability needed for the most demanding investment casting applications.

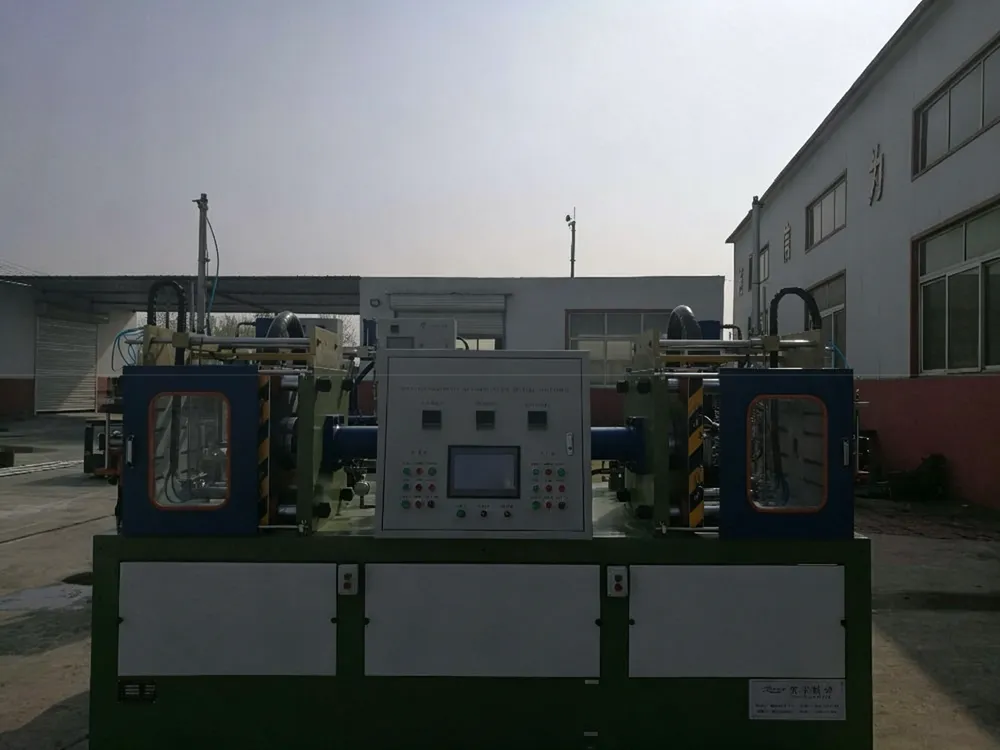

Technical Engineering of the Large Wax Injection Machine

Stability is the foundation of any high-precision casting operation. Our large wax injection machine frames are constructed using heavy-duty steel to withstand extreme pressures without deformation. We offer both C-frame designs for three-side mold access and four-column structures for perfectly balanced clamping force distribution.

Structural Integrity and Precision

• High Clamping Force: Engineered for 100-ton+ capacities to prevent mold parting and flash on massive patterns.
• Dual-Cylinder Injection: Ensures a steady, high-volume wax flow for uniform density across the entire pattern.
• Servo-Driven Hydraulics: High-response wax injection machine technology that cuts energy use while providing pinpoint pressure control.

Component	Technical Advantage
Frame Style	Heavy-duty C-frame or Four-column for maximum rigidity
Drive System	Energy-saving hydraulic servo motors with noise reduction
Injection Unit	Dual-cylinder system for precision paste or liquid delivery

By integrating advanced hydraulic servo motors, we have significantly reduced operational noise and heat generation. This heavy-duty wax injection system provides the stability required for the most complex industrial molds, ensuring that every large-scale pattern meets strict dimensional tolerances. Our engineering focus remains on maximizing uptime through a robust build that handles 24/7 production cycles with ease.

Precision Temperature and Pressure Management for Large Wax Injection

We know that when you are operating a large wax injection machine, consistency is the difference between a perfect pattern and a scrap piece. Temperature fluctuations or pressure drops can lead to internal voids or surface defects that ruin expensive molds. Our systems are engineered to provide absolute control over the thermal and hydraulic environment.

• Multi-Zone Temperature Control: We use independent heating circuits for the reservoir, delivery hoses, and injection nozzle. This ensures the wax remains at the ideal “paste” consistency throughout the entire wax paste injection technology cycle.
• Advanced Pressure Profiling: To prevent shrinkage and air entrapment in thick-walled patterns, our machines utilize multi-stage pressure profiles. This allows for a fast initial fill followed by a precise holding pressure to pack the mold perfectly.
• Integrated Wax Conditioning: Every unit includes a wax reservoir conditioning system with built-in agitation. This keeps the wax homogenized, preventing air bubbles and ensuring uniform material properties for every shot.

By mastering these variables, we help you maintain the high standards required for complex lost wax casting materials and demanding industrial applications. This precision is what makes our heavy-duty wax injection system a reliable cornerstone for any high-output foundry.

Automation and Smart Control Features for Large Wax Injection Machines

We prioritize efficiency by integrating advanced automation into every large wax injection machine we build. Modern investment casting demands more than just power; it requires smart systems that can manage complex cycles without constant manual intervention. By utilizing foundry casting robotics integration, our machines can automatically extract large, heavy patterns, significantly reducing the risk of damage and improving overall shop floor safety.

Smart Interface and Real-Time Monitoring

Our control systems are designed for clarity and precision. We use high-end PLC interfaces that provide operators with a comprehensive view of the entire injection process.

• Real-Time Data: Monitor injection pressure, wax temperature, and flow rates on a single screen.
• Recipe Management: Store hundreds of unique pattern profiles for quick setup and consistency.
• Remote Diagnostics: Our customizable industrial automation solutions allow for rapid troubleshooting and data logging to ensure 24/7 uptime.

Safety and Operational Reliability

Safety is non-negotiable when dealing with high-tonnage equipment. Our machines are equipped with multi-layered industrial safety protocols to protect both the operator and the mold.

Feature	Function
Safety Interlocks	Prevents injection or clamping if doors are open or sensors are triggered.
Light Curtains	Instant machine halt if a worker enters the hazardous zone during operation.
Pressure Relief Valves	Automatic mechanical overrides to prevent over-pressurization of the wax system.
Error Logging	Detailed digital history of all system alerts for preventative maintenance.

By combining fully automatic operation with intelligent monitoring, we ensure that your large wax injection machine delivers high-quality patterns with minimal waste and maximum safety.

Industrial Applications of Large Wax Patterns

Our large wax injection machine is the backbone for industries that require massive, high-precision components. When you are dealing with the scale of aerospace or heavy energy equipment, the quality of the wax pattern dictates the success of the final cast. We provide the stability and volume necessary to produce patterns that meet the most rigorous industrial standards.

Aerospace and Defense

In the aerospace sector, precision is non-negotiable. Our machines are used to create:

• Turbine components: Large-scale blades and vanes for jet engines.
• Structural airframe parts: Complex geometries that require high clamping force to prevent flash.
• Defense hardware: Heavy-duty components for military-grade machinery.

Energy and Power Generation

The energy sector relies on our equipment for the production of massive fluid-handling and power-generating parts. This includes:

• Pump impellers: Large-diameter impellers used in industrial pumping stations.
• Gas turbine parts: High-durability patterns for land-based power turbines.
• By integrating robot integrator applications into the workflow, we allow for the seamless handling of these heavy patterns, ensuring they move through the production line without deformation.

Automotive and Heavy Machinery

For the automotive industry, our large wax injection machine supports the manufacturing of critical engine and drivetrain components. We specialize in patterns for:

• Engine blocks: Providing the structural integrity needed for high-performance casting.
• Transmission cases: Ensuring dimensional accuracy for complex internal housings.
• Heavy equipment housings: Durable patterns for construction and mining machinery.

Whether you are working in lost wax bronze casting for industrial art or manufacturing high-spec engine parts, our high-capacity injectors provide the repeatable accuracy required for large-scale production.

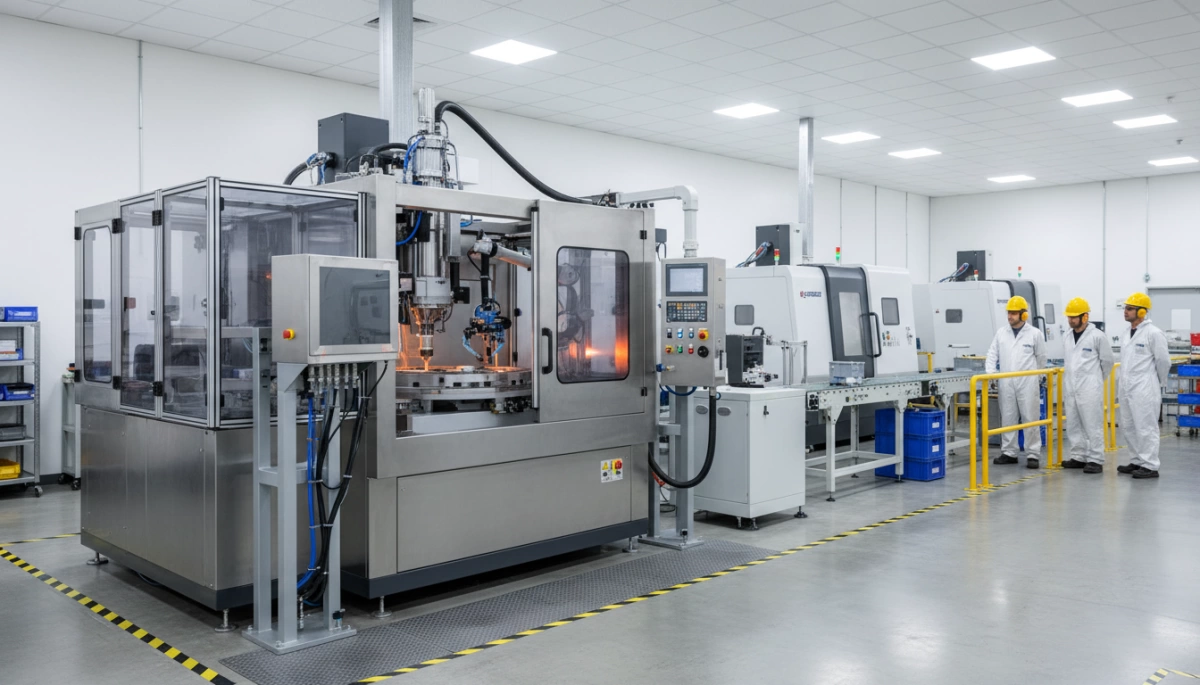

The Vastpce Advantage for Large Wax Injection Machines

We don’t believe in a one-size-fits-all approach for heavy-duty investment casting. Our large wax injection machine solutions are built to handle the rigors of high-volume industrial production while offering the flexibility needed for complex, oversized patterns.

• Tailored Engineering: We provide customized platen sizes and injection strokes. Whether you are casting massive turbine blades or engine blocks, we adjust the machine specs to match your mold requirements perfectly.
• Built for 24/7 Environments: Our machines feature heavy-duty frames and high-end hydraulic systems designed for continuous operation. We focus on industrial durability to ensure your wax injection process remains uninterrupted and efficient.
• Global Technical Support: We back our equipment with a dedicated maintenance and support network. From initial setup to long-term wax injection troubleshooting, we ensure your facility stays productive regardless of your location.

By choosing Vastpce, you are investing in a high-capacity system that prioritizes uptime and precision. We focus on the engineering details—like energy-efficient servos and robust clamping units—so you can focus on scaling your production without worrying about equipment failure.

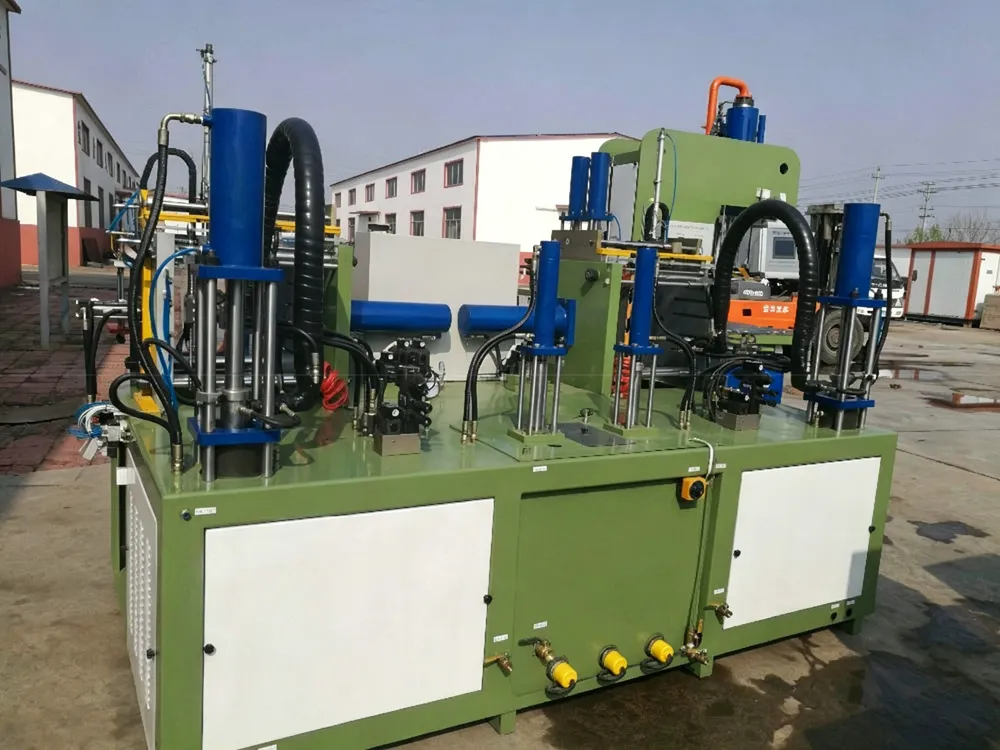

Maintenance and Operational Efficiency for Large Wax Injection Machines

We design our equipment to ensure that your production line stays moving. In high-volume foundries, downtime is the enemy, which is why our large wax injection machine focuses on streamlined maintenance and rapid turnaround times. By integrating smarter mechanical layouts, we help you transition between jobs faster than ever.

Fast Mold Changes and Easy Cleaning

Switching out massive molds shouldn’t take half a shift. Our heavy-duty wax injection system utilizes quick-change clamping plates and accessible hydraulic layouts to minimize setup time.

• Rapid Clamping Adjustments: Easily adapt to different mold heights without complex recalibrations.
• Simplified Wax Path Cleaning: Our injection units feature easy-access nozzles and reservoirs, preventing wax buildup and ensuring a clean investment casting process every time.
• Tool-less Access: Key maintenance areas are designed for quick inspection, reducing the need for specialized tools during routine checks.

Optimized Cooling for Reduced Cycle Times

Large-scale patterns often face the challenge of long cooling periods. We’ve solved this by implementing optimized cooling sequences that manage heat dissipation more effectively.

• Smart Cooling Controls: High-efficiency heat exchangers reduce the “dwell time” required before a pattern can be safely ejected.
• Increased Throughput: By shaving seconds or even minutes off each cycle, our automatic wax molding machine significantly boosts your daily output.
• Consistent Pattern Stability: Faster cooling doesn’t mean compromised quality; our systems ensure the wax sets uniformly to prevent warping or internal stress in large-scale patterns.

Our commitment to efficiency means our machines are built for 24/7 reliability, ensuring that automation in casting process leads to tangible ROI through lower labor costs and higher machine utilization.

Frequently Asked Questions About Large Wax Injection Machines

What is the maximum shot volume for these injectors?

Our large wax injection machine models are engineered to handle massive pattern requirements. Depending on your specific industrial needs, shot volumes typically range from 10 liters to over 100 liters. By utilizing a dual-cylinder injection system, we ensure that even the largest molds are filled with a continuous, steady flow of wax, eliminating the risk of knit lines or structural weaknesses in the pattern.

Can one machine handle different types of pattern wax?

Yes, versatility is a core feature of our high-capacity wax injector systems. Our equipment features multi-zone temperature controls and adjustable agitation speeds to accommodate various materials. Our systems effectively process:

• Paste Wax: For high-dimensional stability and minimal shrinkage.
• Liquid Wax: For intricate internal geometries.
• Water-Soluble Wax: For complex cores.

Selecting the right material is critical for success, and understanding the different types of casting waxes will help you optimize the settings on your injection unit for the best surface finish.

What are the power requirements for a high-tonnage wax press?

Operating a heavy-duty wax injection system requires a stable industrial power supply. Most of our high-tonnage machines operate on 380V to 480V three-phase power. To balance this high demand, we incorporate hydraulic servo motors that reduce energy consumption by up to 50% compared to standard motors. If you are unsure which model fits your utility setup, reviewing a wax injection machines comparison can provide detailed electrical specifications for each tonnage class.

How do you ensure pattern consistency in large-scale production?

Consistency is maintained through precision pressure profiling and real-time monitoring. Our PLC interfaces allow operators to set exact injection speeds and holding pressures, which prevents air entrapment and shrinkage. The integrated wax conditioning system ensures the wax is always at the optimal temperature before it enters the die, providing repeatable results across 24/7 production cycles.
