Wax Injection Molding Machine for Investment Casting

Wax Injection Molding Machine

A wax injection molding machine is the foundational piece of equipment in the lost wax process, also known as investment casting. Its primary function is to inject molten pattern wax into a metal die under high pressure to create a precise wax replica of the final metal part.

In modern foundries, the quality of the wax pattern dictates the quality of the final casting. Any imperfection in the wax—such as air bubbles, shrinkage, or surface roughness—will be mirrored in the finished metal component.

The Critical Role in Investment Casting

The wax injection molding machine serves as the starting point for high-precision manufacturing. We design our systems to handle the heavy lifting of the pattern-making stage:

• Precision Replication: Captures intricate details and complex geometries that traditional machining cannot reach.
• Mass Production: Enables the rapid creation of identical patterns for high-volume industrial runs.
• Material Efficiency: Minimizes wax waste through controlled injection volumes and recyclable runner systems.

How Vastpce Technology Optimizes Your Output

We have refined our wax injection systems to move beyond basic molding. Our technology focuses on two critical metrics: pattern consistency and surface finish.

• Eliminating Turbulence: Our controlled injection speeds prevent air entrapment, ensuring a solid, void-free wax pattern every time.
• Thermal Stability: By utilizing advanced thermostatic controls, we keep the wax at the perfect viscosity, which results in a mirror-like surface finish that reduces secondary polishing costs.
• Zero Dimensional Drift: Our rigid clamping units ensure the mold stays perfectly sealed, preventing “flash” and maintaining tight dimensional tolerances across thousands of cycles.

By integrating Vastpce technology into your foundry, you are not just buying a machine; you are securing a repeatable, high-yield process that directly improves your bottom line.

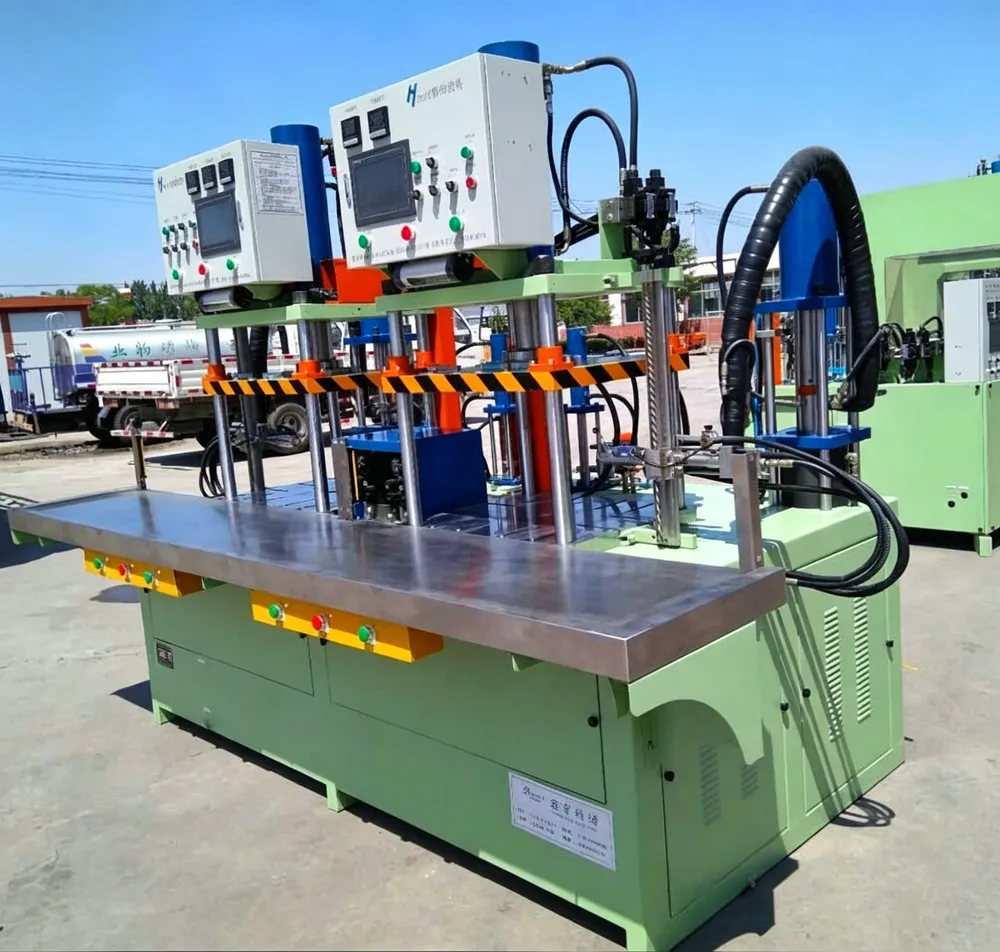

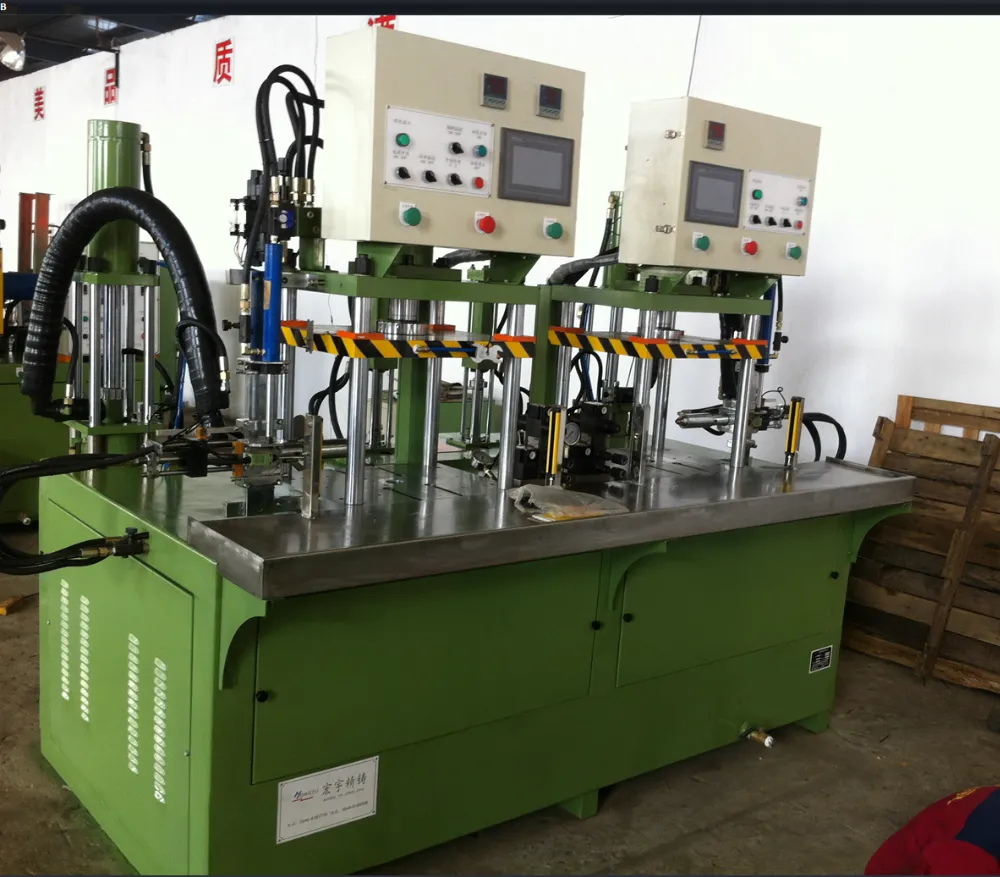

Key Features of Our Wax Injection Molding Machine

We engineer our wax injection molding machine systems to deliver high-precision results for every casting cycle. By focusing on stability and automation, we help foundries eliminate common defects like flash, air bubbles, or shrinkage.

Precision Temperature Control

Our equipment uses dual-zone heating to manage the temperature of the wax tank and the nozzle independently. This thermostatic wax injector design ensures the wax remains at the ideal viscosity, preventing flow issues and ensuring a smooth surface finish on every pattern. Our wax injection machine maintains tight tolerances to ensure the wax is never overheated or under-fluid.

Advanced Hydraulic System

The hydraulic wax injection system provides a stable and powerful clamping force wax machine performance. This prevents mold separation during the high-pressure injection phase, resulting in flash-free patterns that require minimal post-processing. The system is designed for smooth movement, reducing wear on the mold components.

User-Friendly PLC Interface

We integrate an intuitive touchscreen PLC interface that allows operators to program and store multiple injection cycles. This automation makes our pattern wax molding machine easy to operate, even for complex mold geometries, allowing for quick transitions between different production runs.

High-Efficiency Cooling

To maximize throughput, our machines include integrated cooling systems. This significantly reduces the dwell time required for the wax to solidify within the mold, shortening overall cycle times and increasing daily output for high-volume foundries.

Feature	Technical Benefit
Dual-Zone Heating	Ensures consistent wax flow and prevents nozzle clogs.
Hydraulic Clamping	Eliminates flash and ensures dimensional accuracy.
PLC Touchscreen	Simplifies operation with programmable recipes.
Integrated Cooling	Speeds up production by reducing pattern set time.
Precision Sensors	Monitors pressure and temperature in real-time.

Types of Wax Injection Molding Machines

We provide a versatile lineup of wax injection molding machines designed to handle everything from intricate jewelry patterns to heavy-duty aerospace components. Each model is engineered for stability, precision, and long-term durability in a foundry environment.

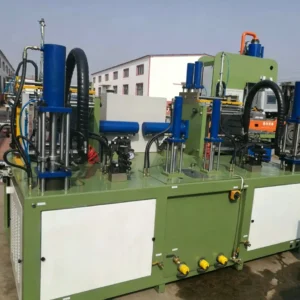

Fully Automatic Wax Injection Machines

These units are built for high-volume industrial production. By automating the entire cycle—from mold clamping to pattern ejection—we help facilities achieve maximum output with minimal human intervention. Our automatic wax machine for precision investment casting ensures every pattern meets strict dimensional tolerances while reducing labor costs.

Turn Table Type Wax Injectors

Optimized for multi-mold efficiency, the turn table design allows operators to load and unload molds while the machine is injecting or cooling another. This continuous operation significantly reduces idle time. Our two station wax injection machine is a popular choice for shops needing to double their productivity without increasing their floor space requirements.

C-Frame & Four-Column Models

• C-Frame Wax Press: Offers three-side access, making it ideal for manual mold placement and larger, awkwardly shaped molds that require easy operator reach.
• Four-Column Models: Provides superior clamping force distribution across the entire mold surface, perfect for large-scale patterns that require extreme structural stability during high-pressure injection.

Manual & Semi-Automatic Options

For specialized runs or low-volume boutique foundries, our manual and semi-automatic machines offer a cost-effective entry point. These systems provide the same high-quality wax conditioning and temperature control as our larger units but with simplified controls tailored for shorter production cycles and frequent mold changes.

Machine Comparison Overview

Machine Type	Best For	Key Advantage
Fully Automatic	High-volume industrial	Minimal labor & high consistency
Turn Table / Double Station	Continuous production	Zero downtime during cooling cycles
C-Frame	Large or complex molds	Three-side access & versatile setup
Four-Column	Heavy-duty patterns	Maximum clamping stability & precision
Semi-Automatic	Specialized/Low-volume	Cost-effective & highly flexible

Technical Specifications and Performance Data

Our wax injection molding machine lineup is built for high-precision output and long-term durability. By mastering the wax injection process, we have optimized our equipment to deliver consistent clamping force and precise volume control for every pattern. These machines are engineered to handle the rigorous demands of industrial investment casting with minimal downtime.

The following table outlines the core performance data for our standard hydraulic wax injection systems:

Technical Parameter	Specification Range
Clamping Force	8 Tons – 50 Tons
Injection Capacity	2L / 4L / 10L / 22L
Max Mold Dimensions	600mm x 500mm x 400mm (Customizable)
Injection Pressure Range	0.5 – 7.0 MPa
Power Requirements	3-Phase, 380V/220V, 50/60Hz
Temperature Accuracy	± 0.2°C to ± 0.5°C
Platen Stroke	200mm – 450mm

We utilize a high-efficiency hydraulic wax injection system to maintain a stable clamping force, which is essential for producing flash-free patterns. Every machine is calibrated to ensure that the injection pressure remains constant, even during high-volume production runs. This technical precision directly impacts the final quality of the investment casting, reducing the need for manual rework and improving overall foundry yield.

Why Choose Vastpce for Your Investment Casting Needs?

We don’t just build a wax injection molding machine; we provide a reliable production partner for your foundry. With decades of experience as a leading manufacturer and supplier, we understand the nuances of the lost wax process better than anyone. Our focus is on delivering high-performance equipment that minimizes downtime and maximizes pattern yield.

Our Competitive Edge

• Manufacturing Excellence: We have refined our engineering over decades, ensuring every hydraulic wax injection system meets strict industrial standards.
• Customized Engineering: No two foundries are the same. We tailor our machines to fit your specific floor layout and production flow.
• Built for 24/7 Durability: Our machines use heavy-duty, industrial-grade components designed to withstand the rigors of continuous, high-volume operation.
• Process Expertise: Whether you are comparing die casting vs investment casting or setting up a new line, our team provides the technical insight to optimize your workflow.

Vastpce vs. Standard Suppliers

Feature	Vastpce Solutions	Standard Machines
Build Quality	Industrial-grade steel & premium hydraulics	Light-duty components
Customization	Fully adaptable to foundry layouts	Fixed, “one-size-fits-all” designs
Reliability	Rated for 24/7 continuous production	Frequent cooling or maintenance breaks
Precision	Advanced PLC with sub-degree temp control	Basic analog or simple digital controls

Choosing our equipment means investing in a wax injection molding machine that supports specialized applications, such as high-precision medical investment casting, where pattern accuracy is non-negotiable. We stand behind every machine we ship, ensuring your investment pays off through consistent, flash-free patterns and long-term service life.

Industrial Applications of Wax Patterns

We design our wax injection molding machines to meet the rigorous demands of high-stakes industries where precision is the only standard. The quality of the wax pattern is the foundation of the entire lost wax process, and our equipment ensures that every detail is captured perfectly.

Our systems are currently utilized across several key sectors:

• Aerospace & Defense: Accuracy is non-negotiable here. We provide the technology to produce intricate wax patterns for turbine blades, fuel nozzles, and complex structural engine components. Maintaining strict process control in investment casting for defect-free precision is how we help clients meet aerospace safety certifications.
• Automotive Industry: We support the mass production of precision engine parts, turbocharger components, and specialized brackets. Our machines offer the high-speed repeatability required for modern automotive supply chains.
• Medical Implants: Accuracy saves lives. Our wax injectors create patterns for orthopedic tools, joint replacements, and dental prosthetics, ensuring high-fidelity detail and a superior surface finish that reduces post-processing time.
• Jewelry & Art: For the creative sector, our machines handle delicate, fine-detailed designs. Whether it’s high-end jewelry or custom bronze sculptures, we provide the stability needed for the most complex geometries.

By focusing on industrial wax pattern making excellence, we ensure that your foundry can tackle the most challenging projects with confidence.

Maintenance and Operation for Longevity

Keeping your wax injection molding machine in peak condition is the only way to ensure a steady production flow. We build our equipment for heavy-duty industrial use, but consistent upkeep is what prevents unexpected downtime and ensures high-quality patterns.

Best Practices for Wax Tank and Hydraulic Care

• Wax Tank Cleaning: Contaminants in the wax can ruin the pattern surface finish. Periodically drain the tank and clean out any residue or sediment to maintain the purity of your pattern wax.
• Hydraulic Fluid Maintenance: Check fluid levels and quality weekly. Clean hydraulic oil ensures the hydraulic wax injection system provides a stable clamping force without pressure fluctuations.
• Filter Replacement: Regularly swap out oil and air filters to protect the internal valves and pumps from premature wear.

Essential Safety Features

Safety is built into the core of our designs to protect operators during high-pressure cycles. Our machines are equipped with industry-standard safety protocols:

• Light Curtains: Infrared sensors that immediately halt operation if an object or hand enters the molding area during a cycle.
• Emergency Stops: Large, strategically placed E-stop buttons for an instant power cut-off in any critical situation.
• Interlocked Guarding: Physical barriers that ensure the machine only operates when the workspace is fully secured.

By following these maintenance steps, you extend the life of your equipment and keep your lost wax casting process running smoothly, safely, and efficiently.

Wax Injection Molding Machine FAQ

Vacuum Wax Injector vs. Standard Injection Machine

The primary difference lies in how the mold cavity is filled. A standard wax injection molding machine uses high pressure to force wax into the die. A vacuum wax casting machine, however, removes air from the mold before injection. This prevents air bubbles and turbulence, making it essential for high-fidelity jewelry wax injection or complex industrial parts where porosity is not an option.

How Turn Table Type Systems Boost Productivity

The turn table type wax injector (often called a double station wax injector) maximizes efficiency by allowing for overlapping cycles. While one mold is undergoing the injection and cooling phase, the operator can unload the finished pattern and prep the next mold on the other side of the table. This continuous workflow significantly reduces idle time compared to a standard hydraulic wax injection system.

Compatibility with Different Pattern Waxes

Vastpce machines are engineered to be highly adaptable. Our systems feature precise thermostatic controls that allow you to work with various types of casting waxes, including filled, unfilled, and water-soluble waxes. By adjusting the temperature and pressure settings, you can maintain consistent results regardless of the specific wax properties required for your industrial wax pattern making project.

Can these machines be integrated into automated lines?

Yes. Our fully automatic wax press models are designed for seamless integration. You can pair our wax injection molding machines with robotic arms for mold handling and pattern removal, creating a hands-off production environment that minimizes labor costs and maximizes pattern consistency.

• Precision: Dual-zone heating prevents wax degradation.
• Stability: High clamping force wax machine designs prevent flash.
• Versatility: Suitable for everything from C-frame wax press setups to large four-column industrial units.
