Casting stainless steel guide for B2B buyers with alloy grades methods tolerances finishes and quality factors for RFQ decision

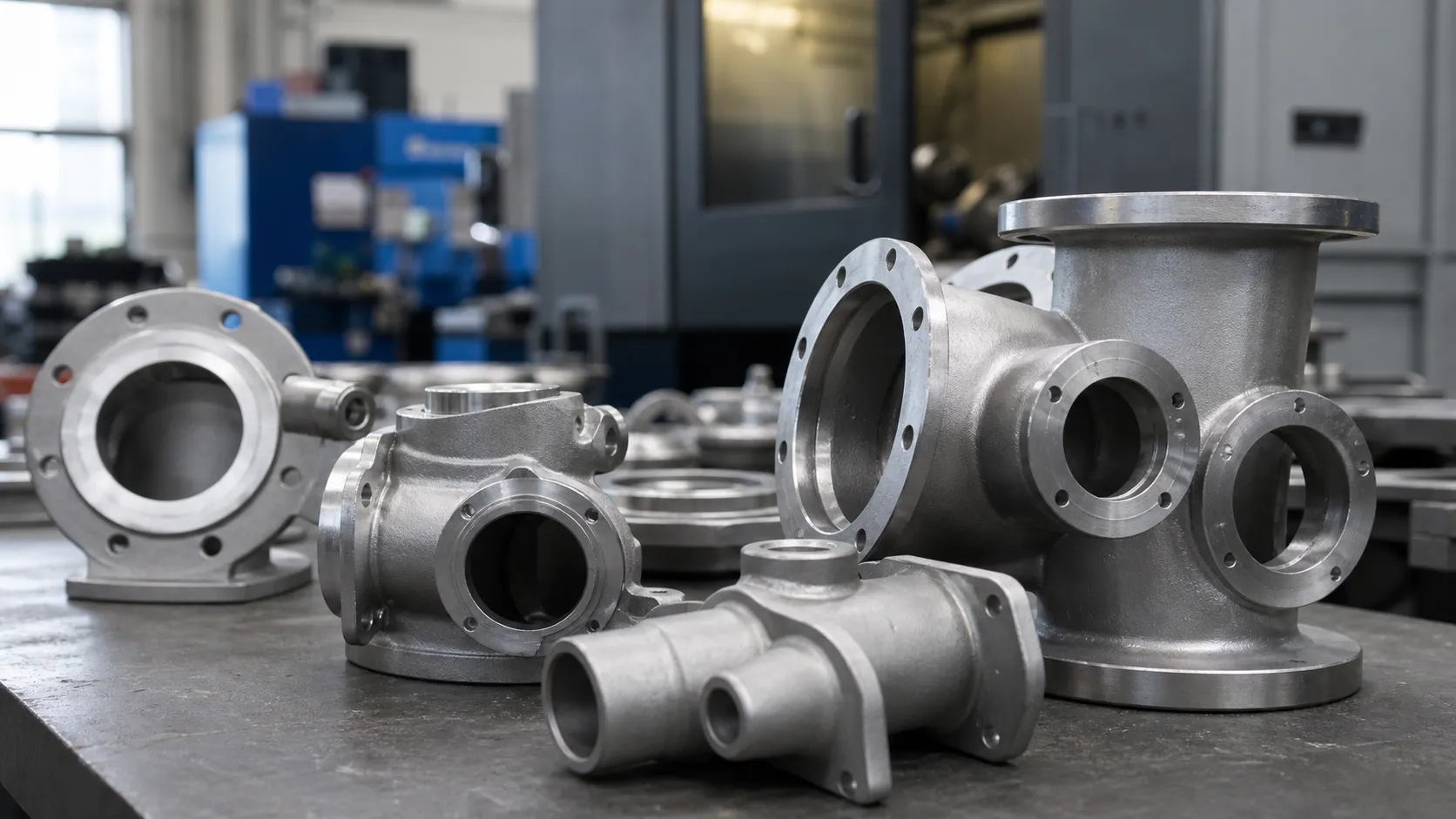

What Is Stainless Steel Casting?
Stainless steel casting is a precision manufacturing process where liquid stainless steel is poured into a custom mold cavity to form solid metal parts with exact geometries. By shaping metal directly from a molten state, casting stainless steel delivers exceptional structural integrity, superior corrosion resistance, and high dimensional accuracy for demanding industrial applications.
In our foundry, we utilize this technique to manufacture durable, near-net-shape components that eliminate unnecessary machining time and significantly lower production costs.
Why Use Casting for Complex and High-Performance Parts
When parts demand complex internal channels, thin walls, or intricate contours, traditional machining from solid block material becomes inefficient and expensive. Casting stainless steel solves these challenges by providing:
- Unmatched Design Freedom: Produce complex geometries, undercuts, and fine detail impossible to achieve through standard machining.
- Material & Cost Efficiency: Near-net-shape production reduces raw material scrap and secondary processing time.
- Uniform Mechanical Properties: Unlike directional wrought metals, cast stainless steel features isotropic structural strength, offering equal resistance to stress from any direction.
Difference Between Cast and Wrought Stainless Steel
While both forms offer excellent corrosion resistance, cast stainless steel and wrought stainless steel differ in their manufacturing methods, grade designations, and optimal use cases:
| Feature | Cast Stainless Steel | Wrought Stainless Steel |
|---|---|---|
| Production Method | Molten metal poured directly into molds | Metal hot- or cold-worked (rolled, forged, extruded) |
| Geometry Capability | Superior for complex, intricate, or custom shapes | Best suited for simple shapes (bars, sheets, tubes) |
| Material Structure | Isotropic grain structure (uniform strength) | Directional grain flow aligned with working axis |
| Standard Designation | ACI / ASTM (e.g., CF8, CF8M, CG8M) | AISI / SAE (e.g., 304, 316, 317) |
| Machining Waste | Minimal due to near-net-shape molding | High material removal for complex parts |
Common Stainless Steel Casting Methods
We leverage specific casting techniques based on your part size, target tolerances, surface finish requirements, and order volume:
- Investment Casting (Lost Wax): The primary choice for high-precision stainless steel castings requiring tight tolerances, thin walls, and exceptional surface smoothness.
- Sand Casting: An economical method ideal for heavy-duty, large-scale industrial components where extreme dimensional precision is secondary.
- Centrifugal Casting: Specialized technique using rotational force to manufacture dense, high-purity cylindrical and tubular components like pipes, rings, and bushings.
Why Choose Stainless Steel Castings
When your applications demand parts that survive extreme conditions without losing dimensional accuracy, casting stainless steel is the definitive choice. We deliver high-integrity components engineered for brutal environments, significantly reducing your long-term maintenance costs and operational downtime.
Our advanced production capabilities at VastPCC focus on delivering premium stainless steel castings tailored to strict US industrial standards. By utilizing cast components over complex welded fabrications, you get a unified grain structure capable of handling severe multi-directional stress.
Performance Advantages at a Glance
| Key Benefit | Technical Advantage | B2B Real-World Impact |
|---|---|---|
| Excellent Corrosion Resistance | High chromium and nickel alloy content fights oxidation, pitting, and harsh chemical attacks. | Extended service life in marine, petrochemical, and water treatment applications. |
| Strong Mechanical Performance | Exceptional tensile strength, wear resistance, and high-temperature stability. | Absolute reliability under extreme pressure, heat, and heavy mechanical loads. |
| Complex Geometries | Near-net-shape production effortlessly handles intricate internal channels and thin walls. | Eliminates expensive secondary CNC machining and material waste. |
| Dimensional Consistency | Tight tolerance control ensures uniform wall thickness and excellent surface quality. | Seamless, out-of-the-box compatibility for rapid assembly line integration. |
Choosing corrosion resistant metal castings guarantees a long service life in demanding environments where component failure is not an option. We optimize the casting process to match your exact alloy requirements, ensuring your parts perform perfectly from day one.
Stainless Steel Casting Methods
Choosing the right production process depends on your part's geometry, required tolerances, batch size, and budget. We utilize three primary methods for casting stainless steel components to meet your exact specifications.
Investment Casting (Lost Wax)
Our lost wax stainless steel casting process is ideal for intricate, high-precision parts. It yields smooth surface finishes and exceptional dimensional accuracy, drastically cutting down or completely eliminating the need for secondary machining.
- Best For: Complex geometries, thin walls, and fine detailed features.
- Key Advantage: Minimal material waste and tight tolerances right out of the mold.
Sand Casting
When you need larger, heavier structural parts, sand casting offers a cost-effective route. We create durable sand molds capable of withstanding high pouring temperatures for massive steel components.
- Best For: Heavy-duty industrial components and medium-to-large parts.
- Key Advantage: Low upfront tooling costs and great flexibility in part size.
Centrifugal Casting
For cylindrical or tubular parts, we use centrifugal force to distribute molten metal evenly against a rotating mold wall. This process forces out impurities and creates a dense, defect-free grain structure.
- Best For: Symmetric, hollow, or cylindrical shapes like bushings, pipes, and rings.
- Key Advantage: Superior mechanical strength and high structural integrity.

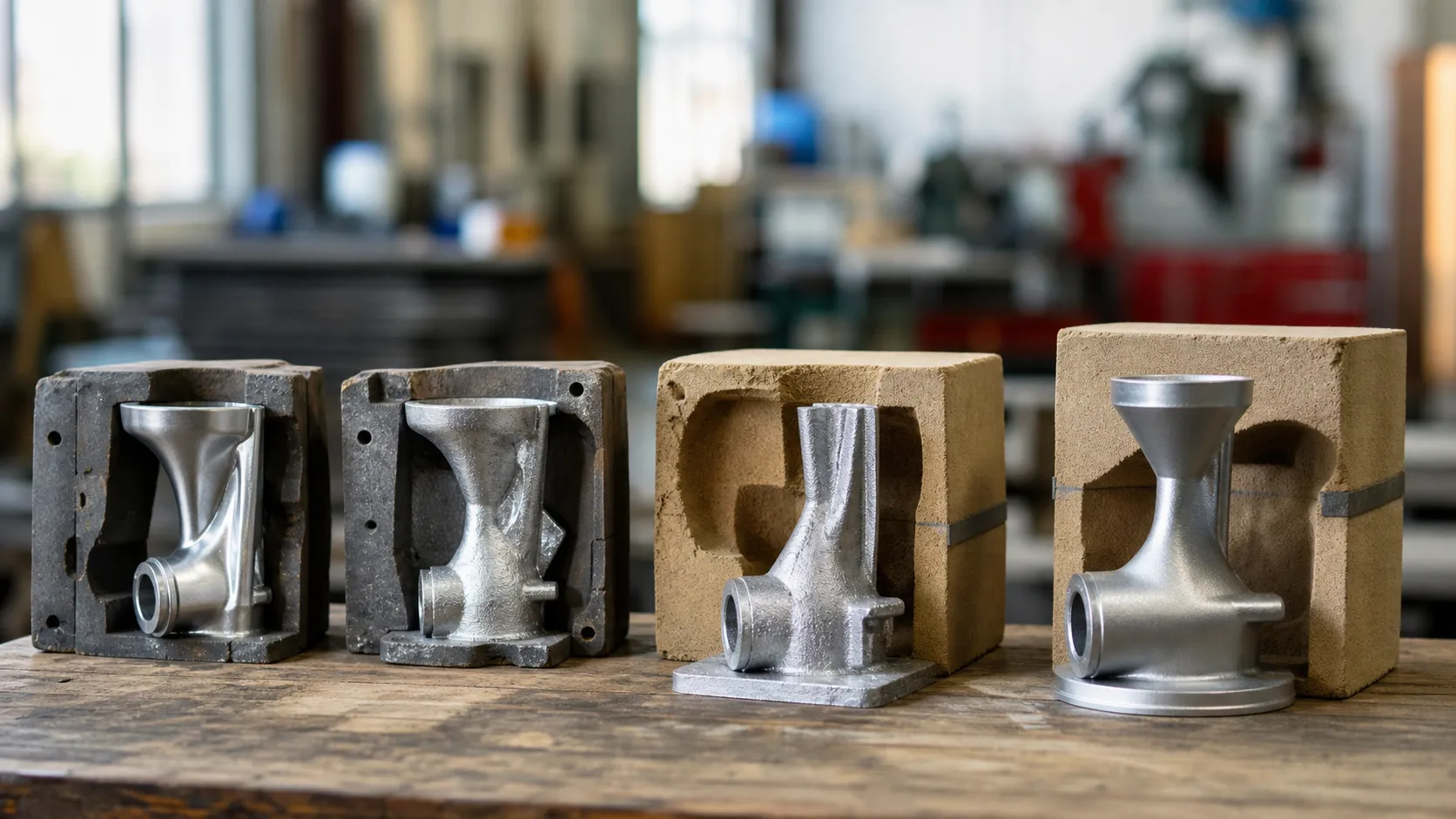

Process Comparison Overview
| Method | Precision & Finish | Part Size Capability | Tooling Cost | Ideal Application |
|---|---|---|---|---|
| Investment Casting | High (Tight tolerances, smooth finish) | Small to Medium (Up to 150 lbs) | Moderate to High | Valves, impellers, marine hardware, medical parts |
| Sand Casting | Moderate (Rougher surface finish) | Medium to Very Large (10 lbs to several tons) | Low | Heavy machinery housings, large valve bodies |
| Centrifugal Casting | High Density (Uniform wall thickness) | Small to Large Cylinders | Moderate | Sleeves, rings, thick-walled tubing, pump liners |
Whether you require precision stainless steel casting for intricate valve parts or heavy-duty sand molds for industrial machinery, our engineering team optimizes each run for maximum performance and cost efficiency.
Stainless Steel Casting Alloys We Pour
Selecting the right grade ensures your cast stainless steel components deliver peak performance, long service life, and optimal cost efficiency. We pour a full range of standard, high-strength, and corrosion-resistant alloys tailored to your exact application requirements.
Standard & High-Performance Alloys
- 304 / CF8: The general-purpose standard for stainless steel casting. Offers great corrosion resistance, excellent machinability, and strong overall mechanical properties for commercial applications.
- 316 / CF8M: Formulated with molybdenum for superior resistance to chlorides, pitted corrosion, and harsh chemicals. Excellent for marine environments and fluid handling.
- 304L / 316L (CF3 / CF3M): Low-carbon variants engineered to prevent carbide precipitation during welding, maintaining maximum corrosion resistance along critical weld zones.
- 17-4 PH (CB7Cu-1): A precipitation-hardening grade delivering high mechanical strength, superior hardness, and good corrosion resistance for high-stress structural parts.
- Duplex Stainless Steel (e.g., 2205 / CD4MCu): Combines austenitic and ferritic properties to offer double the yield strength of standard grades along with extreme resistance to stress corrosion cracking.
Alloy Selection Quick Reference
| Cast Grade | Wrought Equivalent | Primary Performance Traits | Common Applications |
|---|---|---|---|
| CF8 | 304 | General corrosion resistance & affordability | Food processing, commercial hardware, fittings |
| CF8M | 316 | Superior chloride & acid resistance | Marine hardware, chemical valves, pumps |
| CF3 / CF3M | 304L / 316L | Low carbon; prevents weld-zone decay | Welded pressure vessels, chemical piping |
| CB7Cu-1 | 17-4 PH | High yield strength & hardness | Aerospace parts, high-load wear components, valve stems |
| CD4MCu | Duplex 2205 | Extreme strength & pitting resistance | Offshore platforms, oil & gas, desalination equipment |
Custom Alloy Selection
If your project requires specialized mechanical properties, custom heat treatment, or proprietary melt chemistries, we offer tailored custom stainless steel castings. Our metallurgical team reviews your engineering drawings to formulate and pour the exact alloy blend required for your operational environment.

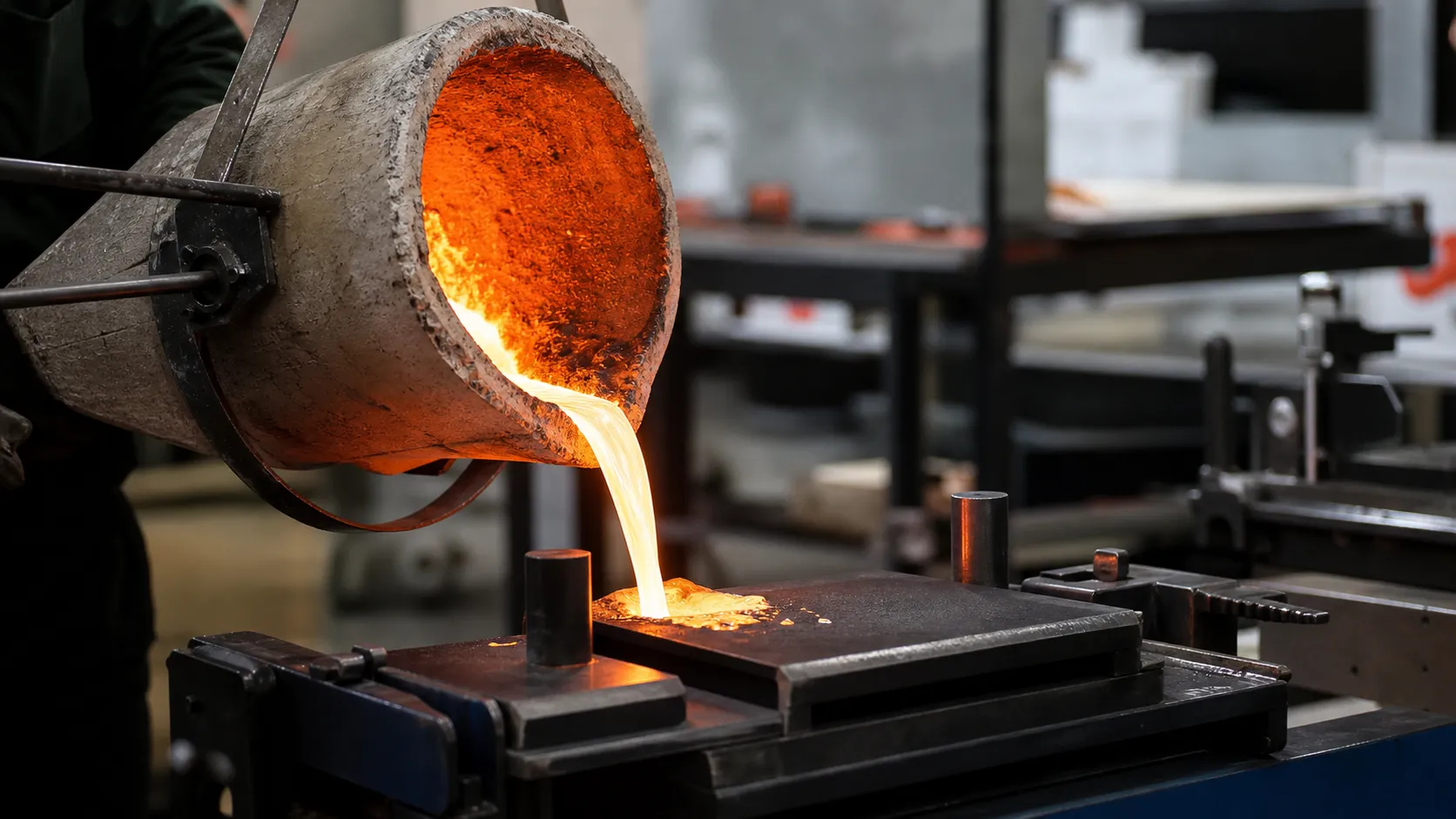

Technical Capabilities for Custom Stainless Steel Castings
We manufacture high-precision cast stainless steel components tailored to your exact engineering specifications. From rapid prototyping to full-scale production runs, our facility combines advanced casting methods with complete post-processing to ensure tight tolerances, superior metallurgical integrity, and ready-to-install parts.
Technical Specifications at a Glance
| Engineering Feature | Investment Casting | Sand Casting | Centrifugal Casting |
|---|---|---|---|
| Dimensional Tolerance | ISO 8062 CT4 – CT6 | ISO 8062 CT8 – CT10 | ISO 8062 CT7 – CT9 |
| Minimum Wall Thickness | 0.060 in (1.5 mm) | 0.200 in (5.0 mm) | 0.250 in (6.3 mm) |
| As-Cast Surface Roughness | Ra 3.2 – 6.3 µm (125 – 250 µin) | Ra 12.5 – 25 µm (500 – 1000 µin) | Ra 6.3 – 12.5 µm (250 – 500 µin) |
| Part Weight Range | 0.02 lbs to 150 lbs | 5 lbs to 3,000+ lbs | 20 lbs to 5,000+ lbs |
| Max Outer Dimension | Up to 24 in x 24 in | Up to 120 in | Up to 120 in (length) |
In-House Machining, Heat Treatment, and Finishing
To save you vendor-management hassles and reduce lead times, we provide full secondary processing under one roof for every stainless steel casting project:
- Precision CNC Machining: 3-, 4-, and 5-axis CNC milling, turning, threading, and boring. We achieve tight feature tolerances down to ±0.0005 in (±0.013 mm) on critical mating surfaces.
- Thermal & Metallurgical Treatment: Full solution annealing, stress relieving, and precipitation hardening (e.g., condition H900 or H1150 for 17-4 PH) to maximize mechanical strength and corrosion performance.
- Passivation & Electropolishing: ASTM A967-compliant citric and nitric passivation to restore chromium oxide layers, alongside premium electropolishing for sanitary food, pharmaceutical, and marine-grade components.
- Surface Polishing: Mechanical polishing options ranging from commercial sandblasting and satin finishes (180 grit) to high-shine mirror polishing (600 grit).

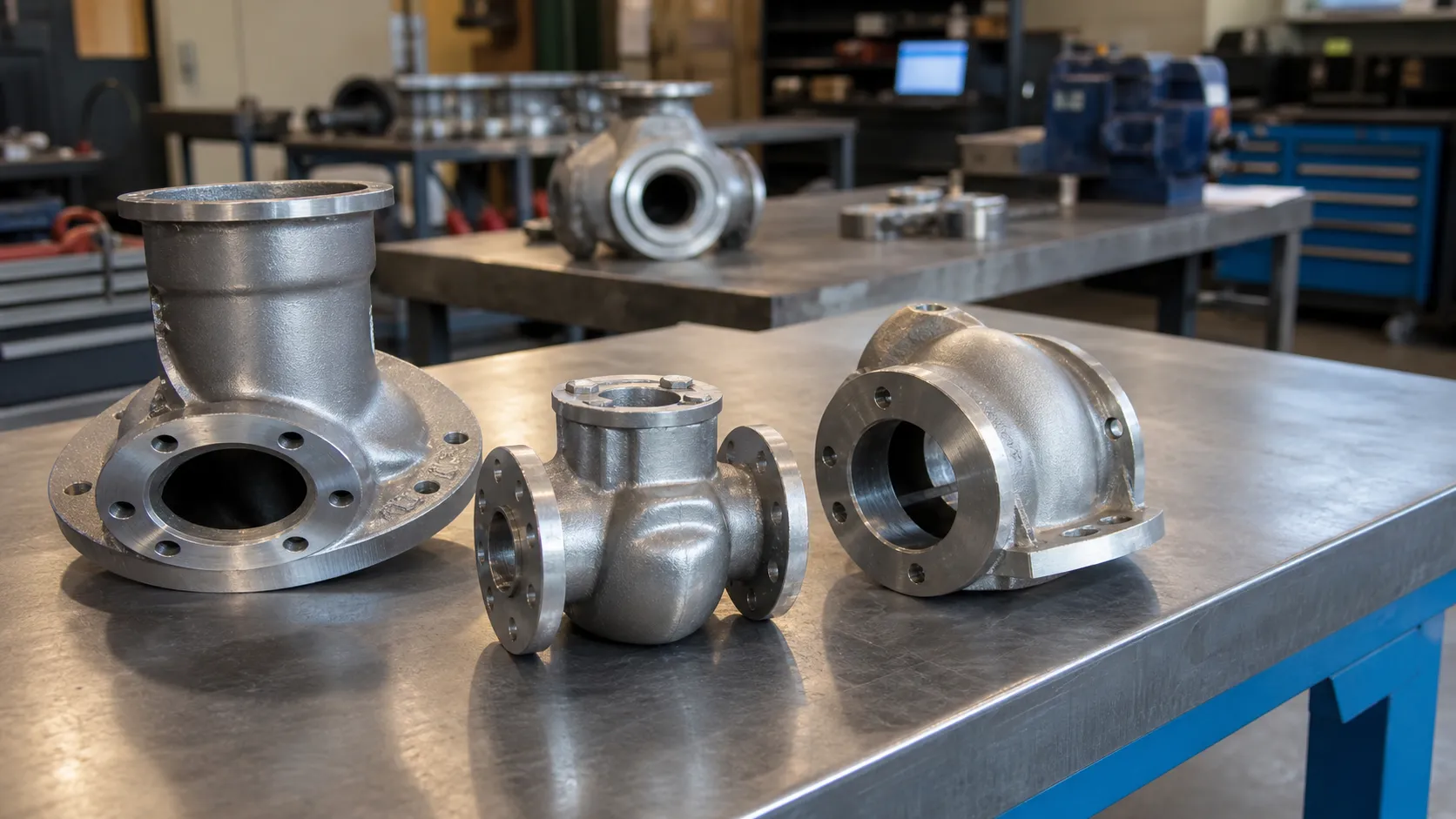

Stainless Steel Casting Applications
We deliver custom stainless steel castings for industries where failure isn't an option. By casting stainless steel, we produce high-strength, wear-resistant components engineered to handle aggressive chemicals, extreme temperatures, and heavy mechanical loads.
Key Applications and Components
- Valves and Pump Parts: High-pressure valve bodies, impellers, pump casings, and manifolds built to control flow and prevent cavitation.
- Marine Hardware: Saltwater-resistant cleats, hinges, brackets, and fittings cast in 316 stainless steel to eliminate pitting and crevice corrosion.
- Chemical Processing Components: Mixing blades, pipe fittings, valve seats, and reactor parts designed to withstand harsh acids and solvents.
- Food-Grade Equipment Parts: Sanitary valve bodies, cutter blades, and conveyor brackets featuring non-porous, easy-to-clean surfaces for washdown environments.
- Aerospace Components: Structural brackets, engine mounts, and fuel system parts engineered for high strength-to-weight ratios under thermal stress.
- Automotive Parts: Exhaust manifolds, turbocharger housings, and sensor brackets built for extreme heat cycle resistance and vibration durability.
- Medical and Laboratory Equipment: Sterilizable device housings, brackets, and instrument components requiring non-reactive, polished surfaces.
- Industrial Machinery Parts: Heavy-duty gears, wear plates, linkages, and bearing housings crafted for long service life in tough factory conditions.
Industry Capabilities Overview
| Industry | Primary Components | Performance Highlight |
|---|---|---|
| Fluid Handling | Valve bodies, pump impellers | High pressure ratings and leak-free flow control |
| Marine & Offshore | Deck hardware, brackets | Maximum pitting resistance in saltwater environments |
| Food & Processing | Sanitary fittings, grinding components | Non-contaminating, easy-to-sanitize surfaces |
| Chemical & Energy | Heat exchanger parts, pipe fittings | Superior chemical resistance under elevated heat |
Whether you require low-volume prototypes or full mass production run, our precision stainless steel casting solutions ensure every component hits your exact mechanical and dimensional requirements.
Our Stainless Steel Casting Process
We follow a strict, standardized workflow for casting stainless steel components to guarantee exact dimensional accuracy and peak mechanical performance. From initial drawing review to final packaging, our end-to-end production delivers reliable quality for high-performance applications.
1. Engineering Evaluation & Drawing Review
We analyze your 2D and 3D CAD files to optimize part geometry, draft angles, and wall thicknesses. Catching design risks early ensures your parts are fully optimized for manufacturability and cost efficiency.
2. Material Selection
We help you select the ideal alloy—such as 304, 316, 17-4 PH, or duplex—matching your specific strength, temperature, and corrosion resistance requirements.
3. Tooling & Pattern Creation
High-precision aluminum dies are CNC-machined to form the exact patterns required for lost wax stainless steel casting or sand molding.
4. Wax Injection & Assembly
For precision stainless steel casting, specialized wax is injected into the tooling to create accurate wax replicas. These patterns are mounted onto a central wax sprue to form a tree structure.
5. Shell Building & Mold Preparation
The wax tree is repeatedly dipped into fine ceramic slurry and coated with refractory material to build a durable, heat-resistant ceramic shell.

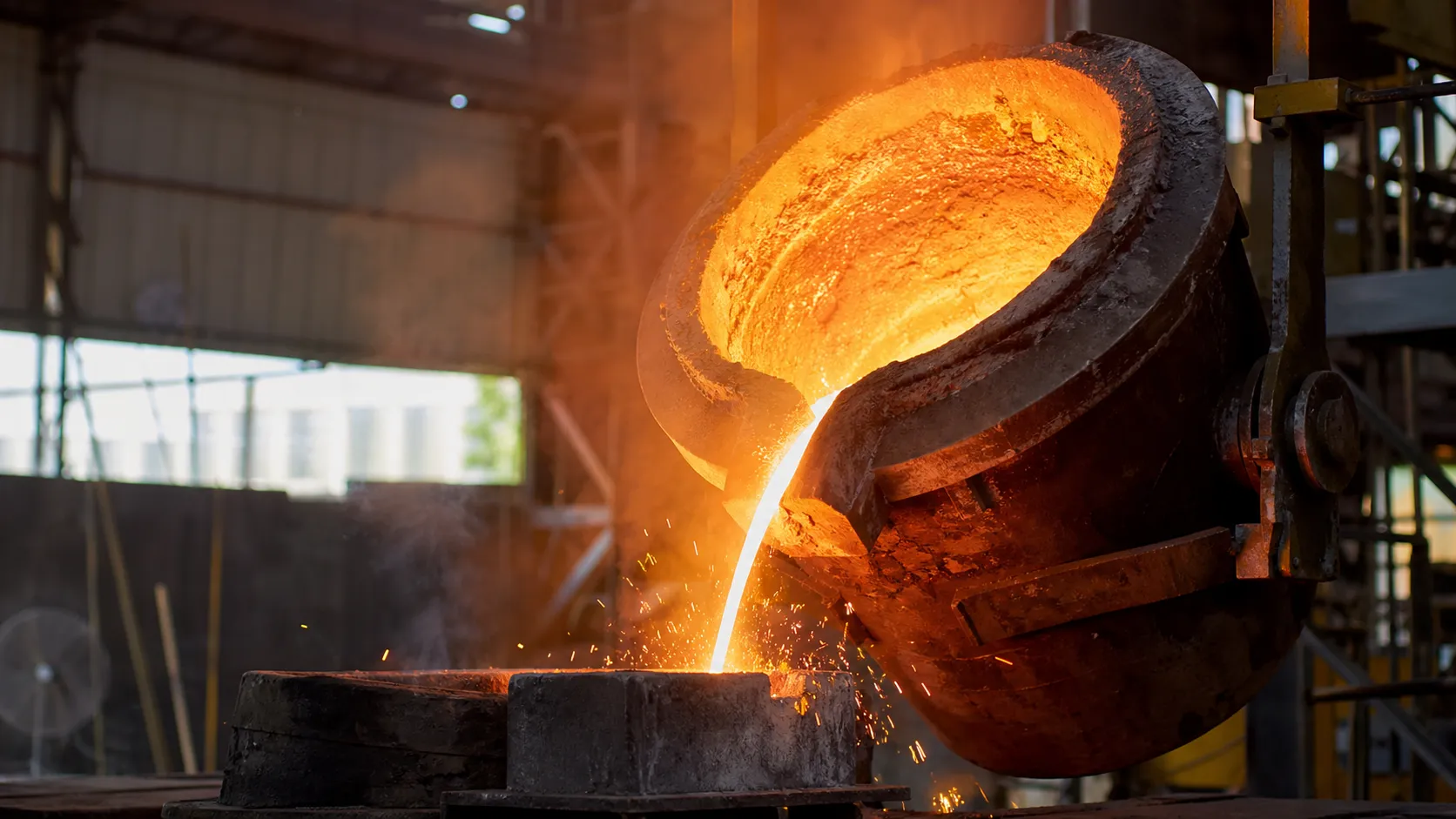

6. Dewaxing & Metal Pouring
The ceramic shell is steam-autoclaved to remove the wax, preheated to prevent thermal shock, and filled with molten stainless steel under controlled induction melting conditions.
7. Cleaning, Cutting & Finishing
After cooling, we break away the ceramic shell, cut parts from the central sprue, grind gate stubs, shot-blast surfaces, and apply necessary heat treatments to restore optimal grain structure.
8. Inspection & Packaging
Every stainless casting undergoes final quality checks—including dimensional verification, alloy composition analysis, and surface testing—before being securely packaged for shipment.
Quality Control and Inspection for Stainless Steel Castings
We maintain strict quality management throughout every stage of casting stainless steel parts to ensure zero-defect delivery for your critical applications. From raw melted alloys to final packed components, our testing protocols guarantee that every stainless steel casting meets your exact metallurgical, physical, and dimensional specs.
| Inspection Stage | Testing Type | What We Verify |
|---|---|---|
| Incoming Materials | Spectrometry & Cert Audits | Alloy purity, exact chemical composition, raw heat certs |
| Process Control | Temperature & Shell Monitoring | Slurry viscosity, thermal stability, pouring speeds |
| Dimensional Inspection | CMM & 3D Laser Scanning | Tight tolerances, complex geometries, machining stock |
| Material Performance | Chemical & Mechanical Testing | Tensile strength, yield, elongation, hardness, alloy grade |
| Non-Destructive Testing (NDT) | Radiography, UT, MT, PT | Internal voids, subsurface defects, micro-cracks, porosity |
| Inspection | Visual & Functional Check | Surface roughness, thread accuracy, packaging, clean finish |
Strict Quality Audits from Start to Finish
- Incoming Material Verification: We test raw ingot heats using optical emission spectrometers before melting to guarantee correct chemistry for every custom stainless steel casting.
- In-Process Monitoring: Real-time tracking of mold conditions, shell drying, and melt temperatures stops defects before pouring even begins.
- Precision Dimensional Inspection: Using automated Coordinate Measuring Machines (CMM) and 3D scanners, we verify high-precision parts directly against your native CAD drawings.
- Mechanical & Metallurgical Testing: We run tensile, yield, impact, and hardness tests on test bars poured from the same heat lot to ensure your cast stainless steel parts endure high operating stress.
- Comprehensive NDT Options: We offer full Non-Destructive Testing, including X-ray radiography, Ultrasonic Testing (UT), Magnetic Particle Testing (MT), and Liquid Penetrant Testing (PT) to detect hidden internal porosity.
- 100% Pre-Shipment Inspection: Every precision stainless steel casting undergoes a final visual audit, surface check, and thread verification before packing. Complete material test reports (MTRs) and inspection certs ship with every order.
Custom Stainless Steel Casting Services
We deliver tailored end-to-end manufacturing solutions built around your exact component specifications. Whether you need a complex OEM part produced strictly to print or ODM assistance to refine an early concept, our engineering team works directly with you to transform designs into high-performance metal components.
Custom Design from Drawings or Samples
We take your project from initial concept to finished part with minimal lead time. Simply send us your technical files or physical samples, and we handle the rest.
- Flexible Input: We accept all major 3D CAD formats (STEP, IGES, SolidWorks) and standard 2D engineering prints.
- Reverse Engineering: We can scan, measure, and recreate detailed CAD models directly from physical sample parts.
- DFM Engineering Support: Our team reviews every drawing for Design for Manufacturability (DFM). We help optimize wall thicknesses, radii, and gating systems to prevent defect risks, improve structural strength, and lower unit costs before tool building begins.
Scalable Production: Prototype to Mass Production
Our production setup adapts to your specific project timeline and batch size requirements. You get the flexibility of low-volume runs without sacrificing the unit-cost advantages of full-scale manufacturing.
- Rapid Prototyping: Validate your designs quickly with 3D-printed wax patterns and rapid tooling before committing to full production molds.
- Flexible Batch Sizes: We accommodate short-run order volumes for specialized machinery, specialized replacement parts, or market testing.
- Mass Production Capability: Automated shell-making and pouring lines support high-volume production runs with stable lead times and identical part-to-part consistency.
As an experienced stainless steel casting manufacturer, we ensure your custom stainless steel castings meet exact geometric and metallurgical specs every time.
Industry Solutions for Stainless Steel Castings
We engineer custom stainless steel castings designed to perform under demanding conditions across major industrial sectors. Our foundry capabilities deliver durable, corrosion resistant metal castings tailored to your exact application requirements.
- Marine and Offshore: Saltwater-resistant 316 stainless steel casting parts, including impellers, deck fittings, hinges, and pump housings built to withstand aggressive marine environments.
- Oil and Gas: High-pressure valve bodies, manifolds, and downhole tools cast in duplex stainless steel casting alloys to resist sour gas, pitting, and abrasive fluids.
- Food and Beverage: Smooth, sanitary-grade components for pumps, mixers, and processing lines engineered to comply with strict hygiene standards.
- Water Treatment: Desalination components, filter bodies, and heavy-duty pump parts built for continuous exposure to chemicals and untreated water.
- Power Generation: High-temperature turbine hardware, burner nozzles, and structural fittings manufactured for extreme thermal stress.
- Medical Devices: Precision stainless steel casting parts for surgical tool handles, lab equipment, and specialized medical fixtures requiring tight tolerances.
- Transportation and Automotive: High-strength turbocharger housings, exhaust manifolds, and heavy truck suspension components built for long service life.
- General Industrial Equipment: Wear-resistant gears, brackets, valve handles, and heavy machinery housings optimized for continuous operational uptime.
Why Choose VastPCC as Your Stainless Steel Casting Partner
Finding a reliable stainless steel casting manufacturer requires a partner who understands tight tolerances, material integrity, and tight production schedules. At VastPCC, we combine advanced technology with deep metallurgy expertise to deliver premium custom stainless steel castings tailored to your exact specifications.
Our Core Advantages
- Technical Expertise in Precision Manufacturing: We specialize in high-precision casting stainless steel components, maintaining strict dimensional control and smooth surface finishes that minimize secondary machining.
- Stable Production Capability: Our modern foundry facility easily scales from rapid prototyping to high-volume production, ensuring reliable supply chain continuity for your business.
- Rigorous Quality Control System: Every cast stainless steel part undergoes strict inspection, including chemical spectro-analysis, mechanical testing, and non-destructive testing (NDT).
- Custom Engineering Support: Our engineering team works directly with your drawings to optimize parts for manufacturability (DFM), reducing material waste and production costs.
- Fast RFQ Response: We deliver fast technical reviews and accurate quotes within 24–48 hours to keep your project moving forward without delay.
VastPCC Advantage Summary
| Feature | VastPCC Capability | Your Business Benefit |
|---|---|---|
| Precision Manufacturing | Investment and sand casting expertise | Lower machining overhead and perfect part fit |
| Production Scale | Prototype to full mass production | Scalable supply that grows with your demand |
| Quality Control | 100% material traceability & NDT options | Zero-defect reliability in critical applications |
| Design Support | In-house DFM review and alloy selection | Optimized component strength and lower cost |
| Turnaround Time | Quotes within 24–48 hours, fast tooling | Shorter lead times and faster market entry |
As a trusted stainless steel casting supplier, VastPCC delivers high-performance metal components built for demanding environments. Partner with us for reliable quality, clear communication, and dependable lead times.
Stainless Steel Casting FAQ
What is the best stainless steel grade for my application?
The right alloy depends entirely on your operating environment: 304 Stainless Steel Casting (CF8): Best for general machinery, commercial hardware, and food-grade components. 316 Stainless Steel Casting (CF8M): Essential for marine hardware, chemical processing, and environments exposed to salts or acids. 17-4 PH: Ideal when high mechanical strength and hardness are required alongside good corrosion resistance. Duplex Stainless Steel: Selected for extreme offshore, oil and gas, and heavy chemical applications.
We evaluate your working conditions to help you select the most cost-effective grade.
Which casting method is best for complex parts?
Precision investment casting (lost wax process) is the standard for complex components. It achieves tight dimensional tolerances, excellent surface quality, and intricate thin-wall features, minimizing or eliminating the need for extra machining.
Can you manufacture according to drawings or samples?
Yes. We manufacture custom stainless steel castings directly from your 2D drawings, 3D CAD models (STEP, IGES, DWG), or physical samples. Our team provides engineering support and manufacturability reviews to optimize your part before tooling creation.
What is the typical lead time for stainless steel castings?
- Tooling & Initial Samples: 3 to 4 weeks
- Mass Production: 4 to 6 weeks
Lead times vary slightly based on part geometry, order volume, and required secondary processing.
Do you provide machining and surface finishing?
Yes. We deliver fully finished, drop-in components. Our complete in-house services include: CNC precision machining and turning Heat treatment (solution annealing, stress relieving, age hardening) Mechanical polishing, passivation, and electropolishing
What inspection reports can be provided?
We guarantee full quality traceability by offering comprehensive test reports with every shipment: Chemical Composition: Spectrometer analysis reports Mechanical Testing: Tensile, yield, elongation, and hardness test data Dimensional Reports: CMM measurement records Material Certification: EN 10204 3.1 material test certificates NDT Reports: X-ray, ultrasonic (UT), magnetic particle (MT), or liquid penetrant (PT) testing records.
English
Russian
German
